Figure 7

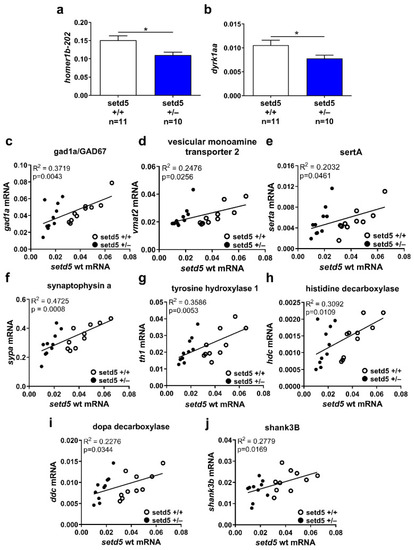

setd5 haploinsufficiency affects mRNA expression levels of synaptic regulators. (a,b) Expression of homer1b-202 (a) and dyrk1aa (b) in setd5+/+ and setd5+/− adult zebrafish brains, obtained by RT-qPCR analysis. The values are expressed as 2−(ΔCt), using bactin1 as the housekeeping gene. n = number of adult brains analyzed. Data are expressed as mean ± SEM. Statistical analysis was performed using a Student’s t-test. * p < 0.05. (c–j) Linear regression analysis between setd5 wild type mRNA level and gad1a/GAD67 (c), vesicular monoamine transporter 2 (d), sertA (e), synaptophysin a (f), tyrosine hydroxylase 1 (g), histidine decarboxylase (h), dopa decarboxylase (i), and shank3B (j) in setd5+/+ (empty dots) and setd5+/− (full dots) adult zebrafish brains, obtained by RT-qPCR analysis. R2 = coefficient of determination. A linear regression-fitting curve is shown.

Expression Data
Genes:
Fish:
Anatomical Term:
Stage: Adult

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Observed In:
Stage: Adult

Phenotype Detail
