Fig. 2

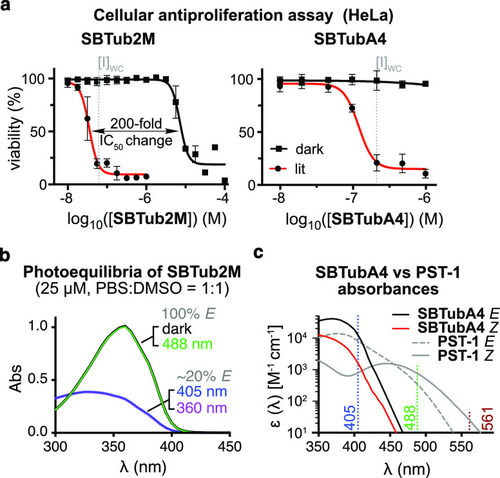

(a) Leads SBTub2M and SBTubA4 have highly nonlinear dose–response profiles, high lit/dark ratio of bioactivity, and mid-nanomolar [I]_WC values. (b, c) Photocharacterization: (b) SBTub2M is not isomerized from its all-E dark state by 488 nm illumination, but is photoswitched to majority-Z lit states by UV/violet light (78% Z at 405 nm by NMR; 1:1 phosphate-buffered saline/dimethylsulfoxide, PBS:DMSO). (c) Comparison of absorbance spectra of SBTubA4 and azobenzene PST-1 illustrates the SBT’s ideal match to 405 nm photoactivation, combining stronger 405 nm absorption, with sharper absorption cutoff above 405 nm, which makes it orthogonal to GFP (488 nm), YFP (514 nm), and RFP (561 nm) imaging.
