Fig 5

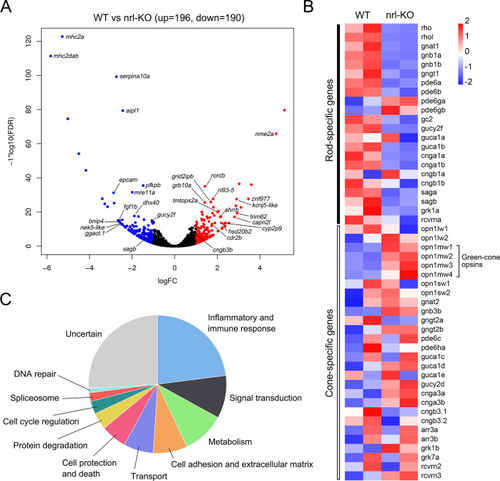

Differentially expressed genes between WT and <italic toggle='yes'>nrl</italic>-KO retinas.

(A) The volcano plot shows the 386 differentially expressed genes (196 up-regulated and 190 down-regulated) between WT and nrl-KO retinas at 2 mpf identified via RNA-seq. The red and blue points indicate the up-regulated and down-regulated genes, respectively. (B) The functional categories enriched among the top 100 differentially expressed genes. (C) The expression patterns of rod- and cone-specific phototransduction genes in nrl-KO retinas shown as a heatmap. Most of the rod genes were down-regulated in the nrl-KO retinas.
