FIGURE

FIGURE 5

ID

ZDB-FIG-211216-177

Publication

Sua-Cespedes et al., 2021 - Low Temperature Effect on the Endocrine and Circadian Systems of Adult Danio rerio

Other Figures

All Figure Page

Back to All Figure Page

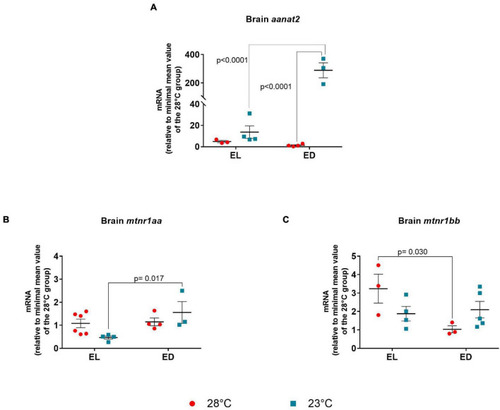

FIGURE 5

Early light (EL) and early dark (ED) gene expression of arylalkylamine N-acetyltransferase (aanat2) and melatonin receptors (mtnr1aa and mtnr1bb) in adult Danio rerio. (A) Brain aanat2; (B) Brain mtnr1aa; (C) brain mtnr1bb. The gene expression was normalized by the 18S rRNA and expressed relative to the lowest mean of the control temperature group. The values are expressed as mean ± SEM. n = 3–6 (pools of four animals each). Significant differences are shown when p < 0.05. Red symbol corresponds to 28^oC and blue symbol corresponds to 23^oC.

Expression Data

Genes:	aanat2 mtnr1aa mtnr1bb
Fish:	WT
Conditions:	low light intensity cold exposure, low light intensity high light intensity cold exposure, high light intensity
Anatomical Term:	brain
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT
Conditions:	low light intensity cold exposure, low light intensity
Observed In:	brain
Stage:	Adult

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Front. Physiol.
