FIGURE

Figure 1

ID

ZDB-FIG-210915-70

Publication

Porčnik et al., 2021 - TRIM28 Selective Nanobody Reduces Glioblastoma Stem Cell Invasion

Other Figures

All Figure Page

Back to All Figure Page

Figure 1

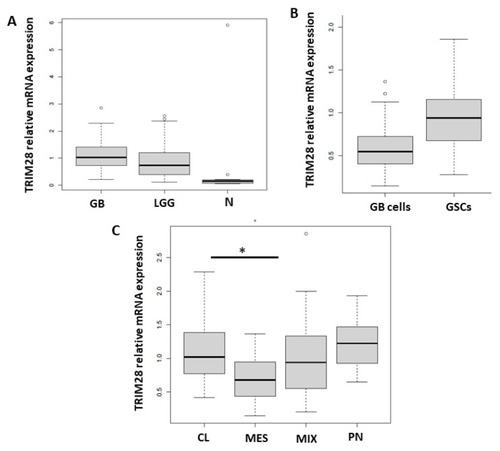

TRIM28 gene expression in glioma tissues, GB cells and GB tissue subtypes. TRIM28 mRNA expression levels were determined by RT-qPCR in (A) GB (n = 95), LGG (glioma I–II, n = 19) and non-cancerous brain tissues (N, n = 16). (B) Primary differentiated GB cells (GB cells, n = 18) and GSCs (n = 6), and (C) CL (n = 24), PN (n = 8), MES (n = 4) and MIX (n = 59) GB tissue subtypes. mRNA values were normalized to housekeeping genes HPRT1 and GAPDH and analysed with quantGenius software [41]. Statistical analysis was performed in R, using analysis of variance to determine the homogeneity of variance between glioma tissues, primary and stem cells, and subtypes. Tukey’s post hoc test was then used to for multiple comparison between groups with significance levels (* p < 0.05). Different Y-axis scales are presented.
