Fig. 2

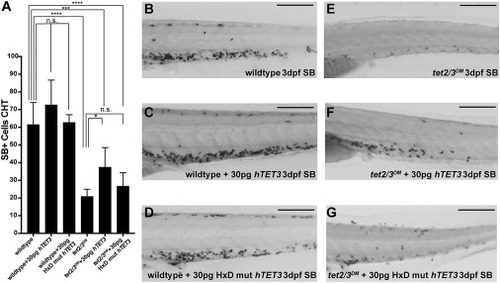

Figure 2. Human TET3 Overexpression Rescues the Granulation Defect in tet2/3DM Embryos (A) Quantification of SB+ cells in the CHT region for uninjected, 30 pg wild-type hTET3 and 30 pg catalytically dead mutant (HxD) hTET3-injected wild-type and tet2/3DM embryos at 3 dpf; n = 6/condition, ∗p < 0.05, ∗∗∗p < 0.001, ∗∗∗∗p < 0.0001 by 2-way ANOVA with Tukey post hoc test. (B–G) Representative images of the CHT of SB-stained uninjected, wild-type hTET3-injected, or mutant hTET3-injected wild-type and tet2/3DM embryos at 3 dpf. Scale bars represent 200 μm. |
