Fig. 1

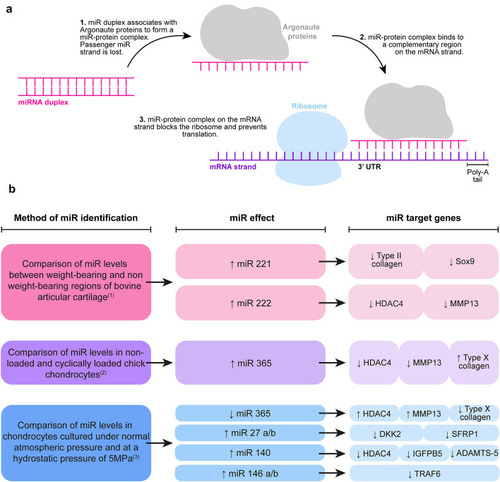

a Schematic overview of miR interaction with mRNA. b Summary of miRs known to respond to specific stimuli in chondrocytes, and the genes which are affected by changes to these miR expression levels. The mechanical stimulus found to alter miR expression is listed on the left, the miR and how its expression is altered is displayed in the central column and the downstream gene targets of each miR are shown in the right column. ⁽¹⁾Dunn et al. 2009, ⁽²⁾Guan et al. 2011, ⁽³⁾Cheleschi et al. 2017
