Fig. 1

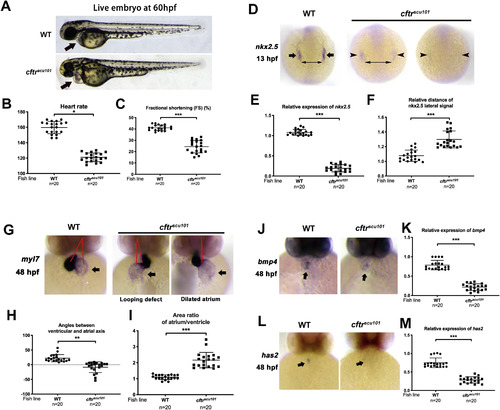

cftr mutation induces cardiac dysplasia in the early zebrafish embryo. (A) Lateral views of live zebrafish embryos at 60 hpf. Arrows indicate the pericardium. Heart rate (B) and quantification of ventricular fractional shortening (FS) (C) are represented in the scatter diagram. (D) The expression pattern of nkx2.5 at 13 hpf is significantly affected in cftr mutant embryos. Embryo orientations: dorsal view with anterior oriented at the top. Arrows indicate normal nkx2.5 expression; arrowheads demonstrate the aberrant strength and position of nkx2.5 expression in the cftr mutant; double-ended arrows indicate the distance between the two populations expressing nkx2.5. Relative expression of nkx2.5 (E) and relative distance of nkx2.5 lateral signal (F) are represented in the scatter diagram. (G) Heart morphology (marked by the pan-cardiomyocyte marker myl7) at 48 hpf was impaired significantly in cftr mutants. Embryo orientation: ventral view with the anterior at the top. Arrows point to the atrium; red lines demonstrate the acute angle formed between the atrial and ventricular axes. Looping angle (H) and area ratio of atrium/ventricle (I) are represented in the scatter diagram. The expression of bmp4 (J and K) and has2 (L and M) is dramatically reduced in cftr mutant embryos at 48 hpf. Embryo orientation: ventral views with the anterior at the top. Arrows point to the signal generated by detected marker genes.

Expression Data
Genes:
Fish:
Anatomical Terms:
Stage Range: 5-9 somites to Long-pec

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Observed In:
Stage Range: 5-9 somites to Pec-fin

Phenotype Detail
