Fig. 1

ID
ZDB-IMAGE-200922-6
Genes
Source
Figures for Liu et al., 2020
Figure Caption

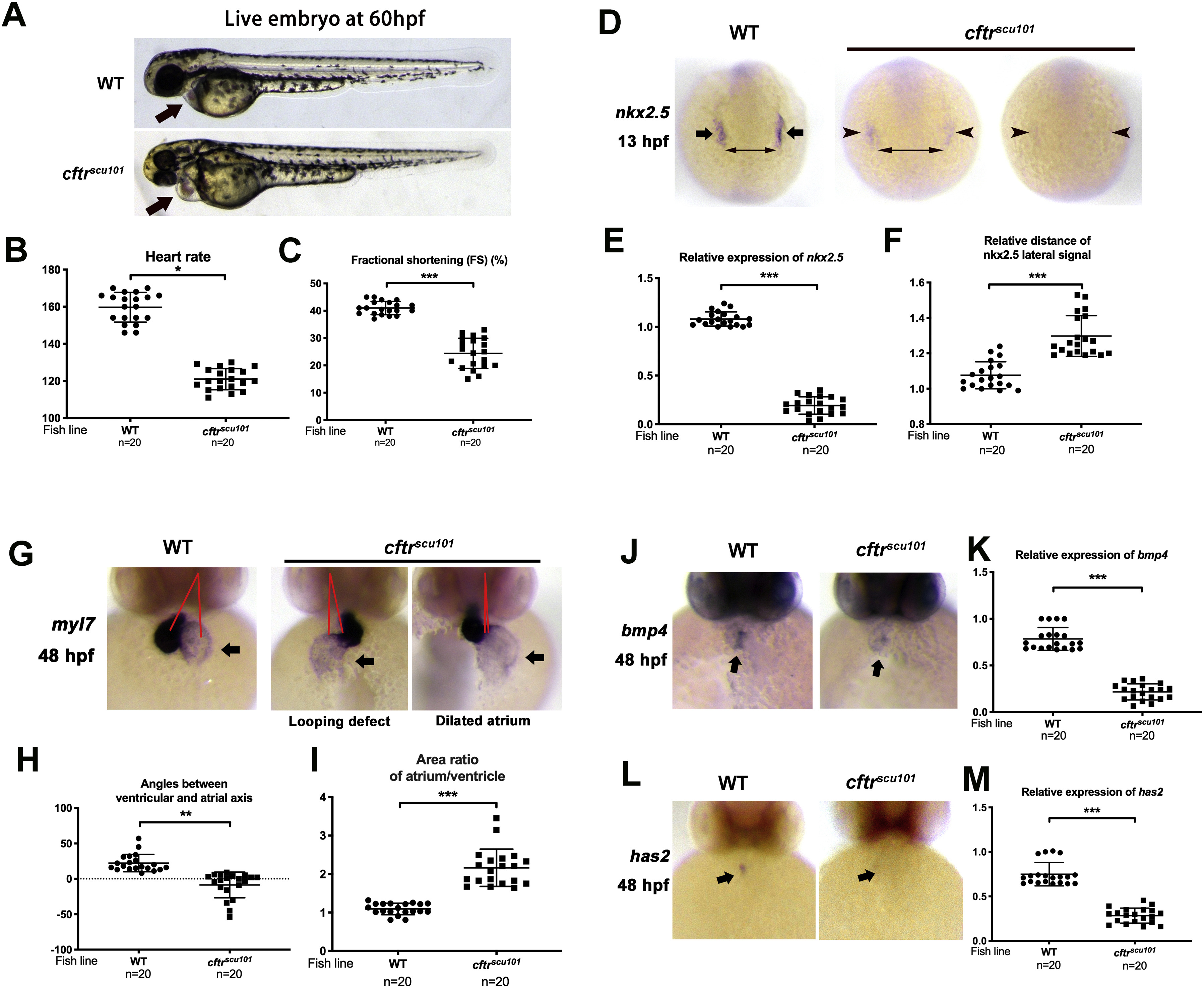

Fig. 1 cftr mutation induces cardiac dysplasia in the early zebrafish embryo. (A) Lateral views of live zebrafish embryos at 60 hpf. Arrows indicate the pericardium. Heart rate (B) and quantification of ventricular fractional shortening (FS) (C) are represented in the scatter diagram. (D) The expression pattern of nkx2.5 at 13 hpf is significantly affected in cftr mutant embryos. Embryo orientations: dorsal view with anterior oriented at the top. Arrows indicate normal nkx2.5 expression; arrowheads demonstrate the aberrant strength and position of nkx2.5 expression in the cftr mutant; double-ended arrows indicate the distance between the two populations expressing nkx2.5. Relative expression of nkx2.5 (E) and relative distance of nkx2.5 lateral signal (F) are represented in the scatter diagram. (G) Heart morphology (marked by the pan-cardiomyocyte marker myl7) at 48 hpf was impaired significantly in cftr mutants. Embryo orientation: ventral view with the anterior at the top. Arrows point to the atrium; red lines demonstrate the acute angle formed between the atrial and ventricular axes. Looping angle (H) and area ratio of atrium/ventricle (I) are represented in the scatter diagram. The expression of bmp4 (J and K) and has2 (L and M) is dramatically reduced in cftr mutant embryos at 48 hpf. Embryo orientation: ventral views with the anterior at the top. Arrows point to the signal generated by detected marker genes.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Mechanisms of Development, 163, Liu, Y., Lin, Z., Liu, M., Liao, H., Chen, Y., Zhang, X., Chan, H.C., Zhou, B., Rao, L., Sun, H., CFTR deficiency causes cardiac dysplasia during zebrafish embryogenesis and is associated with dilated cardiomyopathy, 103627, Copyright (2020) with permission from Elsevier. Full text @ Mech. Dev.
