FIGURE 1

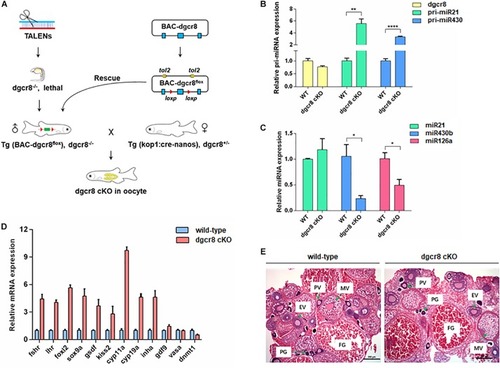

Germline specific dgcr8 deletion has no functional influence on gonad development. (A) A basic schematic diagram of generating dgcr8 germline conditional knockout zebrafish. (B) Real-time analysis of the expression of dgcr8 mRNA and primary miRNAs in ovary of dgcr8 kop-cKO fish. (C) Real-time PCR analysis of the expression of mature miRNAs in ovary of dgcr8 kop-cKO fish. (D) Expression of germline markers in the ovary of dgcr8 kop-cKO. (E) Histology of ovaries in the wild-type and dgcr8 kop-cKO female zebrafish. *p < 0.05, **p < 0.01, and ****p < 0.0001.

Expression Data

Genes:	ddx4 dgcr8 dnmt1 dre-mir-21-1 fshr gdf9 gsdf inha kiss2 lhcgr sox9a
Fish:	WT dgcr8^{zf1064/zf1064}; ihb7Tg/+; zf1065Tg/+
Anatomical Term:	ovary
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	dgcr8^{zf1064/zf1064}; ihb7Tg/+; zf1065Tg/+
Observed In:	ovary
Stage:	Adult

Phenotype Detail
