Figure 1

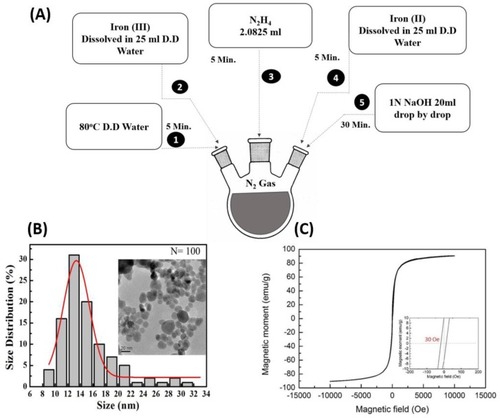

Physical property characterization of Fe₃O₄ magnetic nanoparticles (MNPs) used in this study. (A) Schematic diagram showing the protocol and process for MNPs synthesis. (B) Transmission electron microscopy (TEM) examination of the size distribution of the MNPs. Insert: showing the Fe3O4 MNPs particle size and shape under TEM (scale bar = 20 μm). (C) Hysteresis curve of the MNPs measured by superconducting quantum interference device (SQUID) magnetometry. Insert: showing the calculated magnetic field of the synthesized Fe3O4 MNPs.
