FIGURE

Fig. 1

ID
ZDB-FIG-190827-25
Publication
Park et al., 2019 - Low dose of chronic ethanol exposure in adult zebrafish induces hepatic steatosis and injury
Other Figures
All Figure Page
Back to All Figure Page

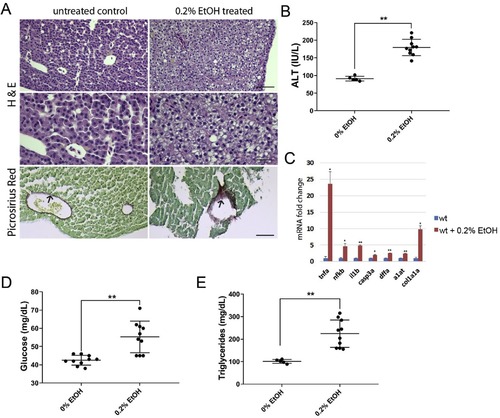

Fig. 1

Chronic ethanol treatment induced hepatic injury, inflammation in the liver and elevation of serum glucose and triglycerides. Adult zebrafish were exposed to 0.2% ethanol for 4 weeks. (A) Hematoxylin and eosin (H&E) staining and Picrosirius Red staining in the liver of untreated and 0.2% ethanol treated adult zebrafish (top and middle). Control livers showed normal hepatocytes (n = 8/10) and ethanol treated siblings showed hepatic injury (n = 9/10). Control livers showed thin layer of picrosirius red positive staining surrounding blood vessels (n = 6/6), ethanol exposed group showed intense staining of fibrotic tissue in some cases (n = 2/5) Scale bar = 50 μm (top, bottom), 25 μm (middle). (B) Alanine aminotransferase assay from blood samples of control, 0.2% ethanol exposed zebrafish. (C) Relative mRNA expression of genes associated with inflammation and liver injury. RNAs extracted from three to five siblings were used for analysis. (D) Quantification of serum glucose in control and ethanol treated zebrafish. (E) Quantification of serum triglycerides in control and ethanol treated zebrafish. Error bars indicate standard deviation of the mean. * p < 0.05, ** p < 0.005.

Expression Data
Genes:
Fish:
Condition:
Anatomical Term:
Stage: Adult

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Condition:
Observed In:
Stage: Adult

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Biomed. Pharmacother.
