Fig. 3

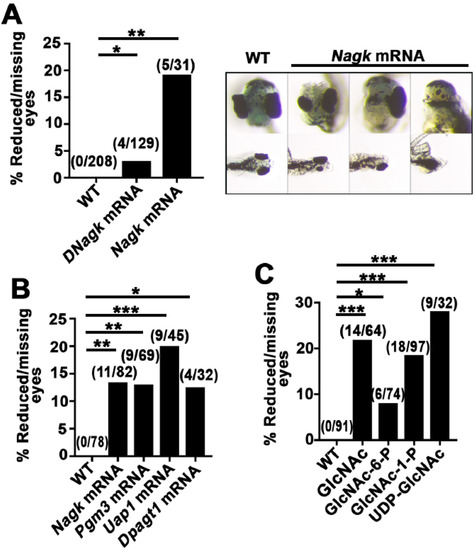

Increasing levels of salvage pathway enzymes, sugars, or Dpagt1 inhibits eye formation in zebrafish. (A) (Left) Injection of DNagk or Nagk mRNAs inhibits eye formation in zebrafish. (Right) Representative images (5 days post fertilization) of disrupted eye formation in zebrafish injected with Nagk mRNA. Observed phenotypes ranged from reduced eye size to missing one or both eyes. Reduced eyes were defined as less than half the size of a wild-type eye. (B) Injection of mRNAs encoding Nagk, Pgm3, Uap1, or Dpagt1 inhibits eye formation. (C) Injection of GlcNAc, GlcNAc-6-P, GlcNAc-1-P, or UDP-GlcNAc inhibits eye formation. Results are aggregates of n ≥ 3 replicates. Injections were performed with 0.5 ng mRNA or 25 pmol sugar. Significance was calculated using Fisher's exact test with Bonferroni correction. Absolute numbers are indicated above bars. (A) *ρ < 0.0253 and **ρ < 0.00501. (B–C) *ρ < 0.0127, **ρ < 0.00251, and *** ρ < 0.000251.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Mechanisms of Development, 156, Neitzel, L.R., Spencer, Z.T., Nayak, A., Cselenyi, C.S., Benchabane, H., Youngblood, C.Q., Zouaoui, A., Ng, V., Stephens, L., Hann, T., Patton, J.G., Robbins, D., Ahmed, Y., Lee, E., Developmental regulation of Wnt signaling by Nagk and the UDP-GlcNAc salvage pathway, 20-31, Copyright (2019) with permission from Elsevier. Full text @ Mech. Dev.
