Fig. 1

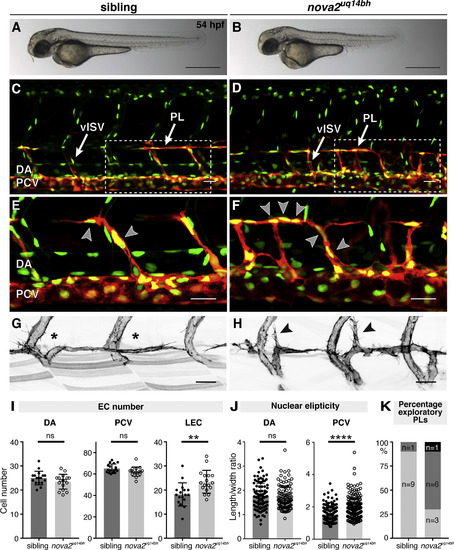

nova2uq14bh Mutants Exhibit Increased Lymphatic Sprouting

(A and B) Overall morphology of a sibling (A) and nova2uq14bh mutant (B) at 54 hpf.

(C–F) Trunk vasculature labeled with Tg(fli1a:nEGFP)y7;Tg(5.2lyve1b:DsRed)nz101 in a sibling (C) and (E) and a nova2uq14bh mutant (D) and (F) at 54 hpf (venous and LECs in red). Arrowheads indicate LEC nuclei. Venous intersegmental vessel (vISV) and PL.

(G and H) Tg(fli1ep:lifeact-EGFP) labeling endothelial F-actin in PLs of a sibling (G) and a nova2uq14bh mutant (H) at 54 hpf. Arrowheads show exploratory PLs.

(I) EC numbers within different lineages: dorsal aorta (DA, arterial), posterior cardinal vein (PCV, venous), and lymphatic ECs (LECs) at 54 hpf. Quantification across 5 body segments (siblings n = 17, mutants n = 17).

(J) Quantification of nuclear ellipticity of ECs in the DA and PCV at 54 hpf. Quantification across 5 body segments (siblings n = 11, mutants n = 11).

(K) Quantification of hyperactive PLs (defined as displaying cellular extensions that probe dorsal to the horizontal myoseptum [HM]) in siblings and nova2uq14bh mutants across 3 body segments (siblings n = 10, mutants n = 10).

Light gray indicates wild-type morphology, dark gray indicates exploratory PLs in 1/2 body segments scored, and black indicates exploratory PLs in 2/2 body segments scored (p = 0.0174). Error bars represent SD, t test (I), or Mann-Whitney-test (J) and (K), ∗∗p < 0.01, ∗∗∗∗p < 0.0001, and ns; not significant; Scale bar represents 1 mm in (A) and (B), 25 μm in (C)–(F), and 20 μm in (G) and (H).

See also Figures S1 and S2.
