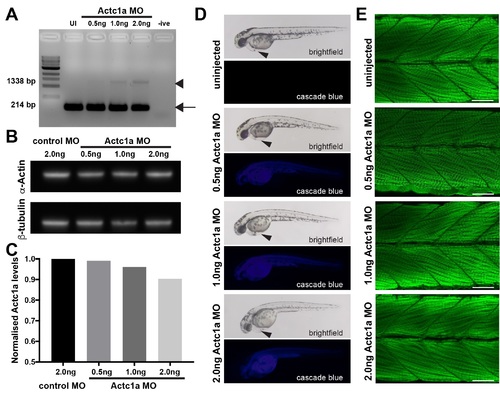

Fig. S6

Analysis of Actc1a MO phenotype.

A) RT-PCR analysis for actc1a following Actc1a MO knockdown. The lower band (arrow) is the expected RT-PCR product of 214bp appearing in both Actc1a MO injected and uninjected embryos. The upper band (arrowhead) appears in the Actc1a MO injected embryos, becoming more apparent as the MO concentration increases, and represents the inclusion of intron 2 resulting from mis-splicing at the exon1/intron2 boundary. B) Western blot analysis and C) quantification of α-actin protein expression in wildtype zebrafish at 2 dpf resulting from increasing doses of Actc1a MO or Standard Control MO, comprising 25 whole embryos. α-actin protein levels were normalized against the β-tubulin loading control. D) Brightfield and cascade blue images of 2 dpf zebrafish embryos injected with increasing doses of Actc1a MO showing the appearance of a dilated heart (arrowheads) in 1.0ng and 2.0ng morphants compared to uninjected controls. Cascade blue was used to identify MO-injected embryos. E) Actinin2 staining of the trunk muscle at 2 dpf reveals no abnormalities in Actc1a MO injected embryos compared to uninjected controls.
