FIGURE

Fig. 7

ID
ZDB-FIG-180502-9
Publication
Singh et al., 2017 - Neuropeptide Y Regulates Sleep by Modulating Noradrenergic Signaling
Other Figures
All Figure Page
Back to All Figure Page

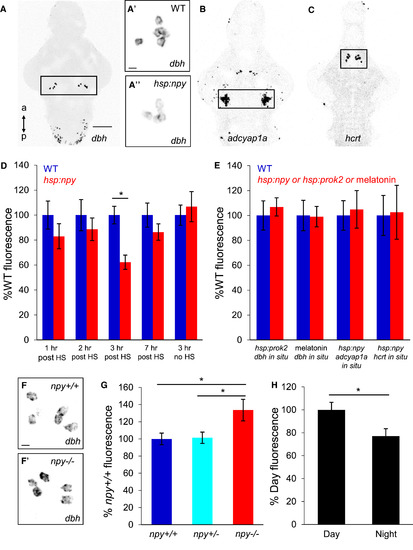

Fig. 7

NPY Signaling Affects dbh mRNA Level in the LC

(A–C) ISH showing dbh expression in the LC (A, boxed) and medulla oblongata. dbh mRNA levels were lower in Tg(hsp:npy) animals (A″) compared to WT siblings (A′) after HS. ISH using probes specific for adcyap1a (B) and hcrt (C). Boxed regions in (A)–(C) are quantified in (D) and (E).

(D) dbh mRNA level in the LC is lower in Tg(hsp:npy) animals than WT siblings at 3 hr post-HS, but there is no significant difference at 1, 2, or 7 hr post-HS.

(E) Overexpression of Prok2 or treatment with 20 μM melatonin had no effect on dbh expression. NPY overexpression did not affect adcyap1a or hcrt expression.

(F and F′) dbh mRNA level in the LC was higher in npy−/− animals (F′) compared to npy+/+ siblings (F).

(G) Quantification of dbh mRNA level in the LC of npy−/− animals and sibling controls.

(H) dbh mRNA level in the LC of WT animals was lower at night than during the day.

Mean ± SEM fluorescence intensity from 8–12 brains for each condition is shown. p < 0.05 by two-tailed Student’s t test (D and H) or one-way ANOVA with Holm-Sidak test (G). Samples are 5-dpf brains. Scale bars, (A–C) 100 μm and (A′, A″, F, and F′) 10 μm.

Expression Data
Genes:
Fish:
Conditions:
Anatomical Terms:
Stage: Day 5

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Condition:
Observed In:
Stage: Day 5

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Curr. Biol.
