Dufton et al., 2015 - Morphological diversity in the orbital bones of two teleosts with experimental and natural variation in eye size. Developmental dynamics : an official publication of the American Association of Anatomists   244(9):1109-1120 Full text @ Dev. Dyn.
ADDITIONAL FIGURES
PHENOTYPE:
Fish:
Condition:
Observed In:
Stage: Adult

Fig. 5

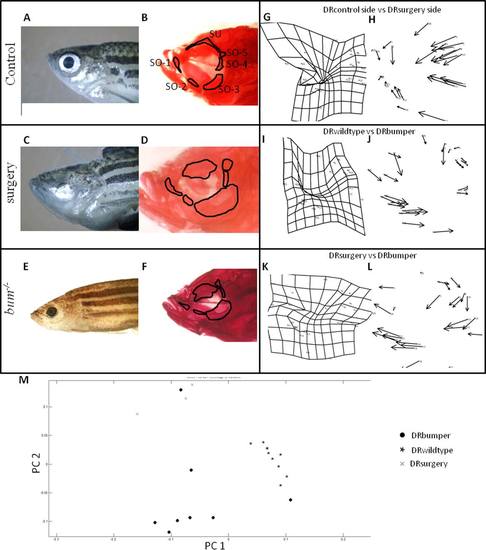

Whole-mount bone stained specimens showing craniofacial bones, thin plate splines, and vector analyses of surgery zebrafish, control zebrafish, control side, and the bumper mutant. A, C, E are unstained; B, D, F, are stained with alizarin red. A,B: Control zebrafish. C,D: lens ablated zebrafish. E,F: bum-/- zebrafish mutant. All scale bars = 500 ┬Ám. G-L: Thin plate spline and vector analysis of comparison between the surgery, control, and bumper mutant zebrafish. Anterior is to the left; posterior is to the right. G,I,K: Deformation grids. H,J,K: Vector analyzes. G,H: Comparison of surgery zebrafish and control side of the head. I,J: Comparison between wild-type and the bumper mutant. In H, the origin of the vectors is the control side of the head and the arrow head is the location of surgery side of the head; in I the origin of the vectors is the control side of the head and the arrow head is the location of the bumper datapoint. K,L: Thin plate spline and vector analysis of comparison between the surgery zebrafish and the bumper mutant. M: Principle component analysis comparing bum-/- mutants, surgery zebrafish and control zebrafish.

Gene Expression Details No data available
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
WT ablation: eye Adult supraorbital bone distended, abnormal
Adult supraorbital bone protruding out of orbit, abnormal
Adult supraorbital bone ventral margin rough, abnormal
bumtg413/tg413 standard conditions Adult eye decreased size, abnormal
Adult lens degenerate, abnormal
Adult orbit constricted, abnormal
Adult supraorbital bone distended, abnormal
Adult supraorbital bone protruding out of orbit, abnormal
Adult supraorbital bone ventral margin rough, abnormal
