Fig. 3

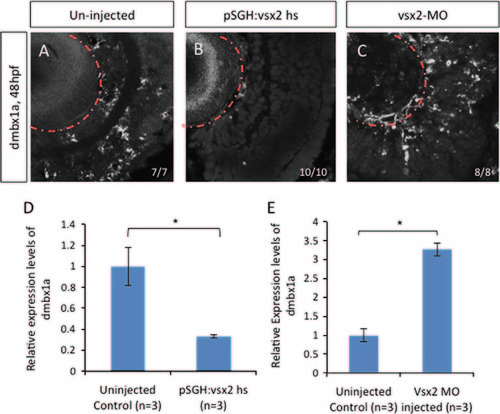

Expression pattern of dmbx1a in embryos with varying vsx2 levels. In situ hybridization of dmbx1a gene expression at 48 hpf in uninjected embryos (A), induced pSGH:vsx2 injected embryos (B) and vsx2 morphants (C). RT-qPCR was used to quantify RNA from three pools of 50 embryos collected from uninjected, pSGH:vsx2 injected, and vsx2 morpholino injected embryos (D and E). There was a significant decrease in dmbx1a expression at 72 hpf when vsx2 is over expressed. In contrast, there was a significant increase at 48 hpf in dmbx1a expression when vsx2 was knocked down. Standard deviation was calculated from three replicate experiments. Statistical significance was accomplished using Student′s t-test (p<0.05).

Expression Data

Gene:	dmbx1a
Fish:	AB AB + MO3-vsx2
Knockdown Reagent:	MO3-vsx2
Anatomical Terms:	head retina
Stage:	Long-pec

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB + MO3-vsx2
Knockdown Reagent:	MO3-vsx2
Observed In:	eye head retina
Stage:	Long-pec

Phenotype Detail
