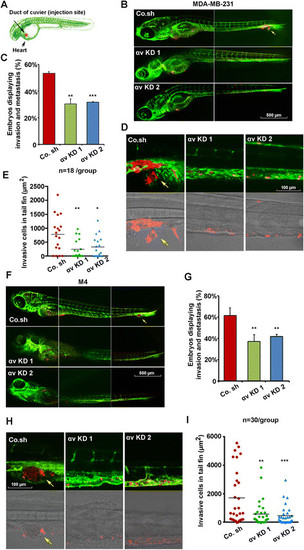

Fig. 2

Integrin αv is required for tumor cell invasion and metastasis in xenografted zebrafish. (A) Schematic diagram of the zebrafish embryo xenograft model. (B) mCherry-labeled MDA-MB-231 cells infected with control shRNA (Co. sh) or αv integrin knockdown shRNAs (KD 1 and KD 2) were injected into zebrafish at 48 hours post fertilization (hpf). Confocal images were made 6 days post implantion (dpi). Arrows indicate invasive tumor cells, scale bar: 500 µm. (C) Percentage of embryos displaying invasion and metastasis detected at day 6 post injection. Data ± SD are representative of three independent experiments (each, n >50). Control versus αv KD 1 P <0.01; control versus αv KD 2 P <0.001. (D) High-resolution images of tumor cells in the posterior tail fin (upper panel, fluorescence; lower panel, transmitted). Arrows indicate invasive tumor cells, scale bar: 100 µm. (E) Area of invasive cells in each embryo (n = 18). Control versus αv KD 1 P <0.01; control versus αv integrin KD 2 P <0.05. (F) Invasion and metastasis in zebrafish xenografted with control or αv integrin knocked-down MCF10A-M4 cells at 6 dpi. Arrows indicate invasive tumor cells, scale bar: 500 µm. (G) Percentage of embryos displaying invasion and metastasis detected at day 6 post-injection. Control versus αv KD 1 P <0.01; control versus αv KD 2 P <0.01. (H) High-resolution images of tumor cells in the posterior tail fin (upper panel, fluorescence; lower panel, transmitted). Arrows indicate invasive tumor cells, scale bar: 100 µm. (I) Area of metastatic clusters in each embryo (n = 30). Control versus αv KD 1 P <0.01; control versus αv KD 2 P <0.001.
