Fig. S2

Normal patterning of anterior lateral plate mesoderm in nkx2.5 mutant embryos.

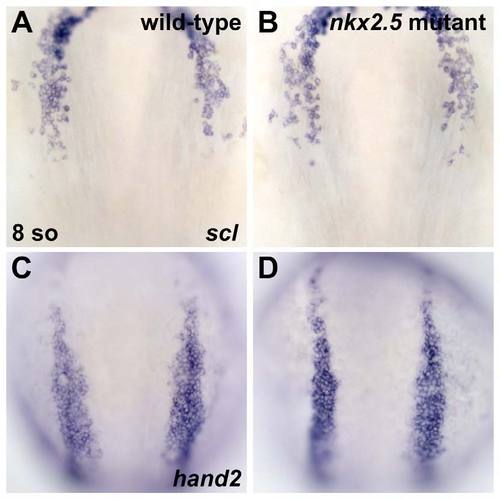

(A-D) In situ hybridization demonstrates expression of scl (A,B) and hand2 (C,D) in wild-type (A,C) and nkx2.5 mutant (B,D) embryos at the 8 somite stage. Dorsal views, anterior to the top. Gene expression patterns appear normal in nkx2.5 mutants; no expansion or reduction of heart field size is evident.
