Fig. 1

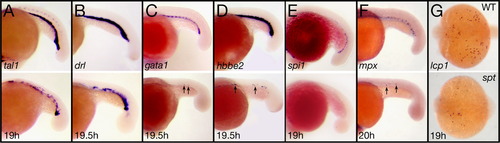

spt mutants have less of all types of blood. (A–F) Expression in the intermediate cell mass at 19–20 h of: (A) tal1 and (B) drl in all blood cells; (C) gata1 and (D) hbbe2 in red blood cells; (E) spi1 in white blood cells; and (F) mpx in neutrophils. (G) lcp expression at 19 h in macrophages derived from the head blood island. Embryos are shown from a (A–F) left side view, or (G) dorsal view with anterior to the left. Arrows designate single cells.

Expression Data

Genes:	drl gata1a hbbe2 lcp1 mpx spi1b tal1
Fish:	WT tbx16^b104/b104
Anatomical Terms:	intermediate cell mass of mesoderm leukocyte macrophage nucleate erythrocyte
Stage:	20-25 somites

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	tbx16^b104/b104
Observed In:	blood cell leukocyte macrophage nucleate erythrocyte
Stage:	20-25 somites

Phenotype Detail
