Fig. S5

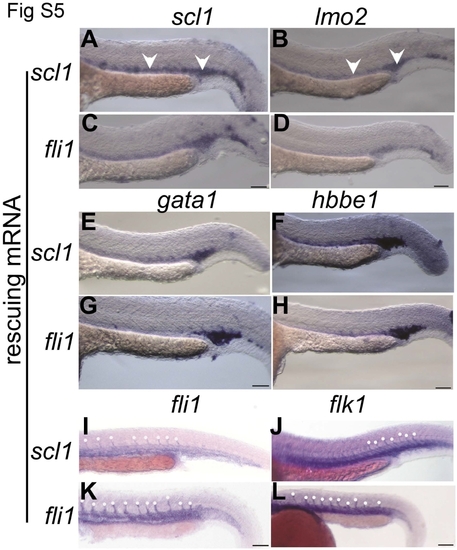

scl1 and fli1 act downstream of hoxd4a to direct formation of the hemangioblast. All images are of hoxd4a morphants at 26–28 hpf previously injected with capped mRNAs for either scl1 or fli1 as indicated on the left. WISH was performed to detect expression of scl1 and lmo2 (A–D), gata1 and hbbe1 (E–H) and fli1 and flk1 (I–L). Scale bars equal 100 μm. All images are at the same magnification. |
