Fig. 5

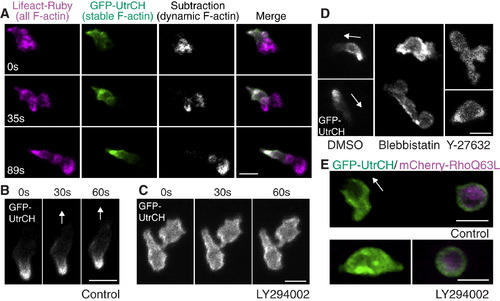

PI(3)K Regulates Anteroposterior Polarity of F-Actin Dynamics

(A) Stable F-actin (GFP-UtrCH) is localized at the tail while dynamic F-actin (Lifeact-Ruby subtracted by GFP-UtrCH) is localized at the front (Movie S9).

(B) In control, GFP-UtrCH labels the tail.

(C) PI(3)K inhibition by LY294002 disturbs tail localization of stable F-actin (Movie S11A).

(D) Myosin ATPase and Rho kinase inhibition disturbs tail localization of stable F-actin (Movie S11C).

(E) Constitutively active RhoQ63L induces cell rounding and localization of stable F-actin all over the membrane (top panel). PI(3)K inhibition does not relieve constitutively active Rho-mediated effects on cell rounding or localization of stable F-actin (lower panel) (Movie S12A). Images are representative of more than five time-lapse movies from experiments repeated on at least two separate dates.

Scale bars = 10 μm.
