FIGURE

Fig. S10

ID
ZDB-FIG-100506-68
Publication
Sheng et al., 2010 - Deletion of the WD40 domain of LRRK2 in Zebrafish causes Parkinsonism-like loss of neurons and locomotive defect
Other Figures
All Figure Page
Back to All Figure Page
Fig. S10

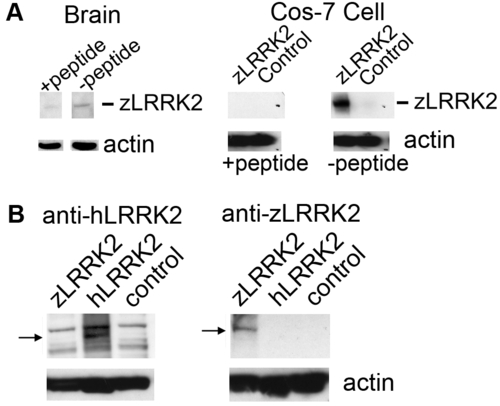

Analysis of zLRRK2 antibody specificity. (A) Specificity of zLRRK2 antibody specificity was verified by western blot analysis. Positive signals could be largely blocked by pre-incubating the anti-zLRRK2 antibody with the neutralizing peptide (+ peptide, left panel). Similarly, the zLRRK2 signal was completely blocked by pre-incubating the anti-zLRRK2 antibody with the neutralizing peptide in the zLRRK2-overexpressing Cos-7 cells (+ peptide, right panel). (B) Western blot analysis showing the specificity of the zLRRK2 antibody against zLRRK2 in Cos-7 cell line. Human LRRK2 and zLRRK2 recombinant proteins were overexpressed in Cos-7 cells separately and detected by anti-hLRRK2 (left panel) and anti-zLRRK2 (right panel), respectively. A positive band (280 kD, arrow) was only detected in hLRRK2-overexpressing cells (hLRRK2, left panel), using anti-hLRRK2 antibody (NOVUS NB 300–268). No obvious band was detected in zLRRK2-overexpressing and untransfected control cells (zLRRK2 and control, left panel); On the other hand, a sharp band (arrow) was detected in zLRRK2-overexpressing cells using the anti-zLRRK2 antibody (zLRRK2, right panel), but not in hLRRK2-overexpressing and untransfected control cells (hLRRK2 and control, right panel). This indicates the anti-zLRRK2 antibody is specifically against zLRRK2 proteins.
