FIGURE

Fig. 5

ID

ZDB-FIG-070813-29

Publication

Etard et al., 2007 - The UCS factor Steif/Unc-45b interacts with the heat shock protein Hsp90a during myofibrillogenesis

Other Figures

(all 7)

All Figure Page

Back to All Figure Page

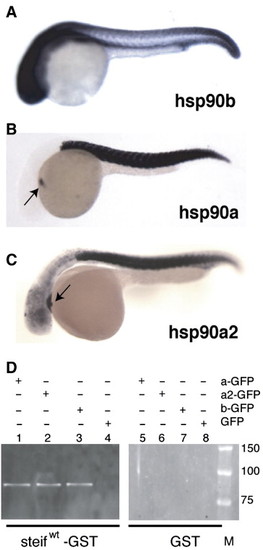

Fig. 5

Steif/Unc-45b interacts with Hsp90a in vitro. (A–C) in situ hybridization with hsp90b (A), hsp90a (B) and hsp90a2 (C) antisense probes on 1-day-old embryos. hsp90a and a2 are strongly expressed in skeletal and heart muscles (arrow), while hsp90b is ubiquitously expressed. (D) in vitro pull-down assay. Steif-GST interacts with Hsp90a-GFP, Hsp90a2-GFP and Hsp90b-GFP but not GFP alone (lanes 1 to 4). GST without fused Steif does not pull down Hsp90a-GFP, Hsp90a2-GFP, Hsp90b-GFP or GFP (lanes 5 to 8). The Western blots were developed with anti-GFP antibody. M: protein standards indicated in kDa.

Expression Data

Genes:	hsp90aa1.1 hsp90aa1.2 hsp90ab1
Fish:	WT
Anatomical Terms:	primitive heart tube somite trunk musculature whole organism
Stage:	Prim-5

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 308(1), Etard, C., Behra, M., Fischer, N., Hutcheson, D., Geisler, R., and Strähle, U., The UCS factor Steif/Unc-45b interacts with the heat shock protein Hsp90a during myofibrillogenesis, 133-143, Copyright (2007) with permission from Elsevier. Full text @ Dev. Biol.
