Fig. 5

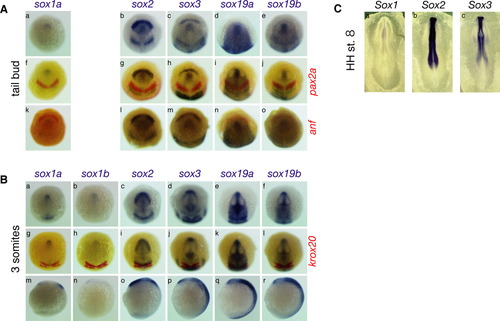

The expression of zebrafish group B1 sox genes from the tail bud to three-somite stages of embryonic development. A: Dorsal views of tail bud stage embryos with the anterior toward the top. Double labeling shows sox expression in blue and pax2a (f-j) and anf (k-o) expression in red. B: Dorsal views of three-somite stage embryos with the anterior toward the top(a-l); lateral views of three-somite stage embryos with the dorsal side toward the right(m-r). krox20 expression is shown in red (g-l). C: Chicken Sox expression at HH stage 8 (4 somites).

Expression Data

Genes:	egr2b hesx1 pax2a sox1a sox1b sox2 sox3 sox19a sox19b (all 9)
Fish:	TL
Anatomical Terms:	forebrain neural keel hindbrain neural plate midbrain hindbrain boundary neural plate neural plate neurogenic placode presumptive rhombomere 3 presumptive rhombomere 5 (all 7)
Stage:	1-4 somites
