FIGURE SUMMARY
Title

A New Hypoglycemic Prenylated Indole Alkaloid N-Oxide from Endophytic Fungus Pallidocercospora crystalline

Authors
Gao, S., Lin, X., Shi, Y., Zhou, H., Zheng, X., Li, M., Lin, T.
Source
Full text @ Int. J. Mol. Sci.
Fig. 1

Indium-mediated reduction of N-O bonds.

Fig. 2

Structures of compounds 1–8.

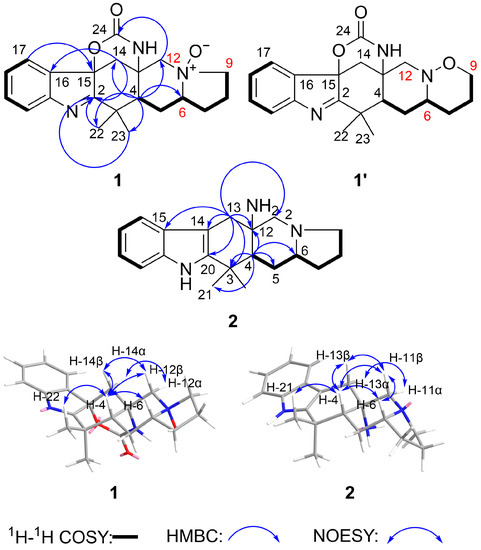

Fig. 3

Key 1H-1H COSY, HMBC and key NOESY correlations for 1 and 2.

Fig. 4

Regression analysis of experimental versus calculated 13C NMR chemical shifts of 1 and 1′.

Fig. 5

Experimental and calculated ECD spectra of 1 and 2 in methanol.

Fig. 6

Compounds decreased the glucose level in a diabetic zebrafish model: (A) Schematic representation of zebrafish diabetic model Tg(−1.2ins:htBidTE-ON; LR). Zebrafish insulin promoter was employed to drive the proapoptotic gene human truncated Bid (htBid) under the control of a TRE-based system. After incubation with doxycycline (Dox) and tebufenozide (Tbf), the htBid will express and cause β-cell apoptosis. The htBid will not express without incubation of Dox and Tbf (red cross). (B) Representative confocal images of the β-cell number from Tg(−1.2ins:htBidTE-ON; LR); Tg(−1.2ins:H2BmCherry) larvae treated with (tBid + Dox + Tbf) or without (tBid) doxycycline and tebufenozide β cells were indicated by the fluorescence of mCherry. Scale bars indicate 10 μm. (C) Total free glucose level of 6 dpf Tg(−1.2ins:htBidTE-ON; LR) treated with or without compounds. Total of 10 μM of each compound was added at 5 dpf after the β-cell ablation, and lasted for 24 h; then, their glucose levels were measured. WT: wild type. RGZ: rosiglitazone, which was used as positive control. The values shown are means ± SEM from three independent experiments. ** p < 0.01, and *** p < 0.001 via one-way ANOVA.

Fig. 7

Compounds increased glucose uptake without any apparent toxicity: (A) The β-cell number of each compound-treated double transgenic zebrafish Tg(−1.2ins:htBidTE-ON; LR) Tg(−1.2ins:H2Bmcherry). Total of 10 μM of each compound was added at 5 dpf after the β-cell ablation for 24 h. (B) The glucose uptake indicated by 2-NBDG fluorescence. The larvae of each group were induced with doxycycline and tebufenozide except the group of tBid in 3 dpf for 48 h. Total of 10 μM of each compound was added at 5 dpf after the β-cell ablation for 24 h. Then, 2-NBDG was incubated for 3 h in dark. RGZ: rosiglitazone. The values shown are means ± SEM from three independent experiments. * p < 0.05, ** p < 0.01 and *** p < 0.001 via one-way ANOVA. (C) Morphology of 24 hpf embryos or 72 hpf zebrafish larvae treated with compounds. (D) Blood vessel morphology of 6 dpf zebrafish larvae Tg(flil:eGFP) treated with compounds.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
