FIGURE SUMMARY
Title

The antimicrobial peptide MK58911-NH2 acts on planktonic, biofilm and intramacrophage cells of Cryptococcus neoformans

Authors
Singulani, J.L., Oliveira, L.T., Ramos, M.D., Fregonezi, N.F., Gomes, P.C., Galeane, M.C., Palma, M.S., Fusco Almeida, A.M., Mendes Giannini, M.J.S.
Source
Full text @ Antimicrob. Agents Chemother.

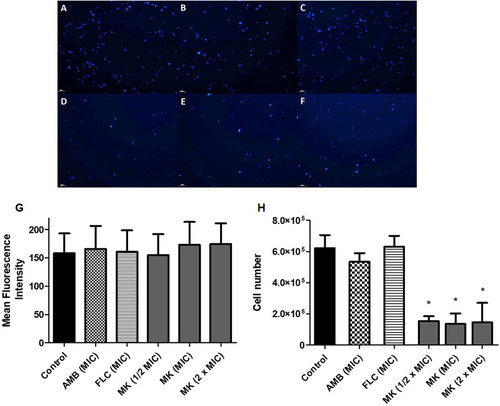

C. neoformans cells exposed to the peptide for 4 h and marked with calcofluor white. (A) Control; (B) amphotericin B (AMB) at the MIC; (C) fluconazole (FLC) at the MIC; (D to F) peptide MK58911-NH2 (MK) at 1/2× MIC, the MIC, and 2× MIC; (G) average fluorescence intensity per cell; (H) number of cells. Data represent the means (± standard deviations [SD]) from three independent experiments. *, P < 0.05 compared to the control.

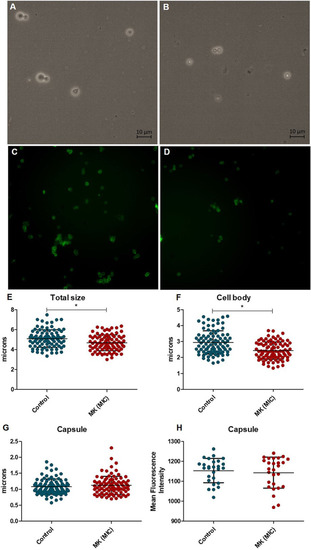

C. neoformans cells exposed to the peptide for 4 h and marked with India ink (A, B, and E to G) or antibody 18b7 (C, D, and H). (A and C) control; (B and D) peptide MK58911-NH2 (MK) at the MIC; (E) total cell diameter; (F) diameter of the cell body (without capsule); (G) diameter of the capsule; (H) average fluorescence intensity per cell. Data represent the means (±SD) from three independent experiments. *, P < 0.05 compared to the control.

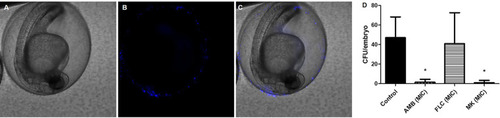

Representative images of zebrafish embryos exposed to a fungal suspension (1 × 106 cells/ml) of C. neoformans. (A) Bright-field image; (B) fungal cells labeled with calcofluor white; (C) overlay of images; (D) effect on the fungal load in embryos infected and exposed to treatments with MK58911-NH2 (MK), amphotericin B (AMB), and fluconazole (FLC) at the MIC for 24 h. Data represent the means (±SD) from two independent experiments. *, P < 0.05 compared to the control.

Activity of peptides MK58911-NH2 and MH58911-NH2 against intramacrophage C. neoformans (A) and on the viability of J774 macrophages (B). AMB, amphotericin B; FLC, fluconazole. Data represent the means (±SD) from three independent experiments. *, P < 0.05 compared to the control.

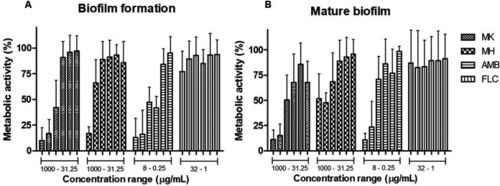

Activity of peptides MK58911-NH2 (MK) and MH58911-NH2 (MH) on biofilm formation at 0 h (A) and mature biofilm at 48 h (B) of C. neoformans. AMB, amphotericin B; FLC, fluconazole. Data represent the means (±SD) from three independent experiments. *, P < 0.05 compared to the control.
