FIGURE SUMMARY
Title

Vegfc/d-dependent regulation of the lymphatic vasculature during cardiac regeneration is influenced by injury context

Authors
Vivien, C.J., Pichol-Thievend, C., Sim, C.B., Smith, J.B., Bower, N.I., Hogan, B.M., Hudson, J.E., Francois, M., Porrello, E.R.
Source
Full text @ NPJ Regen Med
Fig. 1

ZFIN is incorporating published figure images and captions as part of an ongoing project. Figures from some publications have not yet been curated, or are not available for display because of copyright restrictions.

Fig. 2

ZFIN is incorporating published figure images and captions as part of an ongoing project. Figures from some publications have not yet been curated, or are not available for display because of copyright restrictions.

Fig. 3

ZFIN is incorporating published figure images and captions as part of an ongoing project. Figures from some publications have not yet been curated, or are not available for display because of copyright restrictions.

Fig. 5

ZFIN is incorporating published figure images and captions as part of an ongoing project. Figures from some publications have not yet been curated, or are not available for display because of copyright restrictions.

Fig. 6

ZFIN is incorporating published figure images and captions as part of an ongoing project. Figures from some publications have not yet been curated, or are not available for display because of copyright restrictions.

Fig. S5

Cryoinjury stimulates a lymphangiogenic response in the caudal fin

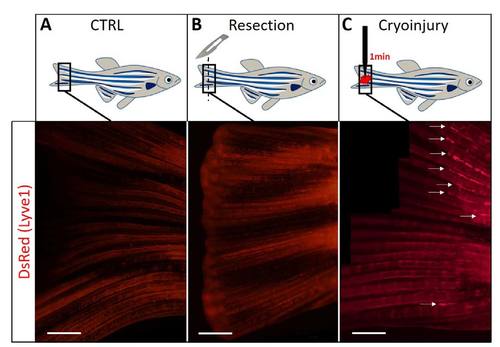

A: In control fish (without injury), dsRed (Lyve1) is not detected in the caudal fin indicating that lymphatic vessels are not present in the control zebrafish fin. B: The caudal fin was resected (along the dotted line) and observed 4 days post resection. DsRed (lyve1) is not detected in the zebrafish fin 4 days post amputation indicating that resection injury does not induce a lymphangiogenic response in the fin. C: The caudal fin was cryoinjured for 1 minute and observed 4 days post cryoinjury. A robust lymphangiogenic response to cryoinjury in the caudal fin was evident by the presence of DsRed (Lyve1) positive vessels between the fin rays (white arrows). Scale bar length 1mm.
