Fig. 4

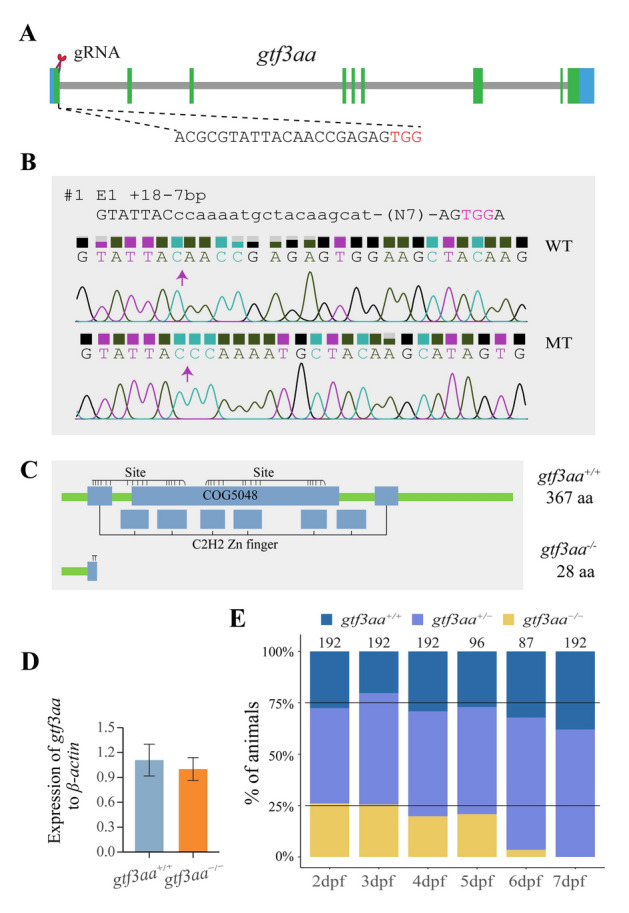

Generation and characterization of gtf3aa mutants in zebrafish. A Target site of gtf3aa using CRISPR/Cas9. B Upper panel: Sequencing chromatogram of the gtf3aa gRNA target site in wild-type (WT) zebrafish. Lower panel: Chromatogram of the mutant site in the gtf3aa genome. Insertions are shown in lowercase, and missing bases are denoted by “N” followed by the number of deleted bases in parentheses. C Predicted Gtf3aa protein structures from both WT and MT zebrafish. D Expression levels of gtf3aa mRNA in mutant and wild-type larvae at 3 dpf. E Survival rate of gtf3aa^+/− self-cross larvae. The number of larvae used at each stage is shown at the top of each bar. WT wild type, MT mutant type, aa amino acids, dpf days postfertilization
