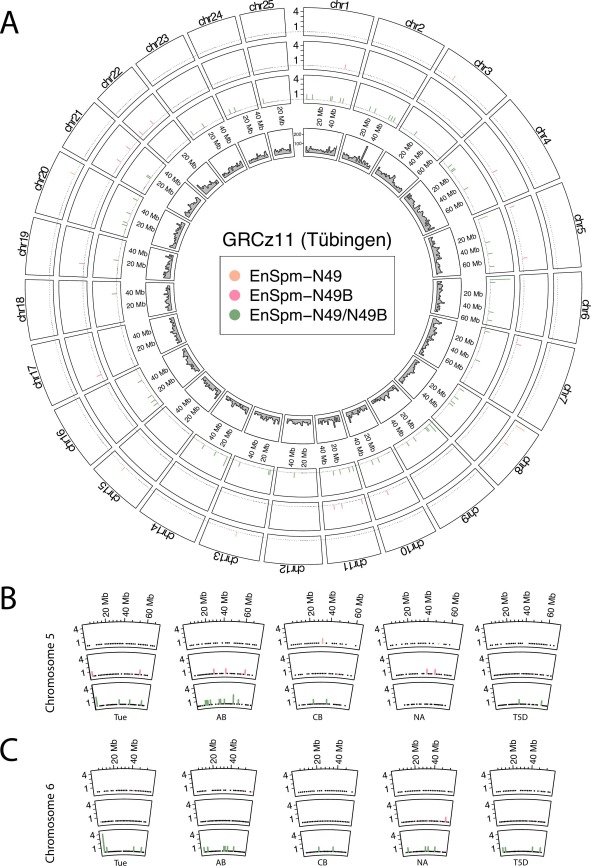

Fig. 3 The position of EnSpm transposons observed in this study vary across zebrafish genomes. (A) Genomic positions of EnSpm-N49 (orange), EnSpm-N49B (pink) and EnSpm-N49/N49B (green) transposons in nonoverlapping 2-Mbp windows across the nuclear chromosomes of the Tübingen (Tue) GRCz11 reference genome. Inner circle shows the coverage of protein-coding genes on the same chromosomes. (B, C) Genomic positions of the observed transposons show variability across the genomes of multiple wild-type isolates for chromosomes 5 (B) and 6 (C). (Y axis denotes copy numbers in the 2-Mbp windows. Strain abbreviations can be found in Table 3. For other chromosomes see Supplementary Fig. 4.)
