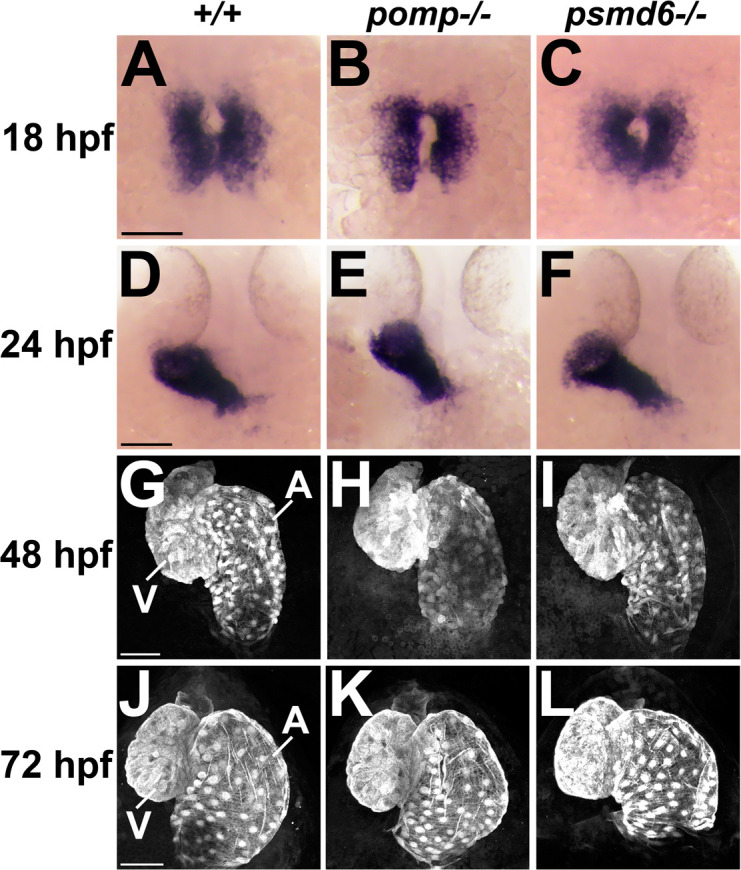

Fig 5 Early heart development appears normal in pomp and psmd6 mutants.

A.-C. Dorsal views of ALPM labeled for myl7 in blue in 18 hpf embryos. Normal heart morphology: 6/6 pomp⁺^/⁺, 7/7 psmd6⁺^/⁺, 11/11 pomp^-/-, 8/8 psmd6^-/-. Scale bar = 100 μm. D.-F. Dorsal views of hearts labeled for myl7 in blue in 24 hpf larvae. Normal heart morphology: 8/8 pomp⁺^/⁺, 8/8 psmd6⁺^/⁺, 6/6 pomp^-/-, 10/10 psmd6^-/-. Scale bar = 100 μm. G.-I. Ventral views of hearts labeled with myl7:EGFP in 48 hpf embryos. Normal heart morphology: 13/16 pomp⁺^/⁺, 11/12 psmd6⁺^/⁺, 14/14 pomp^-/-, 11/12 psmd6^-/-. Scale bar = 50 μm. V, ventricle. A, atrium. J.-L. Ventral views of hearts labeled with myl7:EGFP in 72 hpf larvae. Normal heart morphology: 35/38 pomp⁺^/⁺, 22/24 psmd6⁺^/⁺, 39/45 pomp^-/-, 25/29 psmd6^-/-. All embryos were genotyped. Scale bar = 50 μm. V, ventricle. A, atrium.
