Fig. 2

ID
ZDB-IMAGE-250410-22
Source
Figures for Rajeswari et al., 2025
Figure Caption

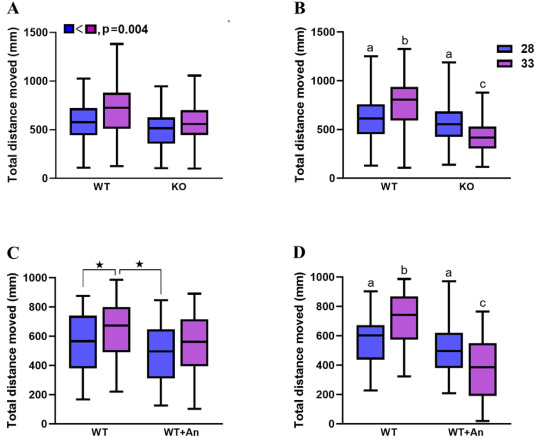

Fig. 2 Loss of Crhr1 abolish the thermal stressor-induced hyperactivity: The top panel shows the total distance moved in the light by the wildtype (WT) and crhr1−/− larvae (KO) in response to 28 °C (28) or 33 °C (33) at 15 (A, only main effect, P = 0.004) or 60 min (B, significant interaction and no main effect, P = 0.0002). Boxes represent 1 SD above and below the mean of the data (n = 84–188, 4–8 trials with 24 larvae each), the line inside the box shows the median of the data, and the whiskers indicate the minimum and maximum of all the data; boxes with different letters are significantly different (nonparametric Two-way ANOVA). The bottom panel shows the total distance moved by the wildtype without (WT) and with antalarmin (WT + An) in response to 28 °C (28) or 33 °C (33) at 15 (C, only interaction, asterisk (∗) denotes significant difference between two group, P = 0.02) or 60 min (D, significant interaction but no main effect, P = 0.00003). Boxes represent 1 SD above and below the mean of the data (n = 34–90, 2–4 trials with 24 larvae each), the line inside the box shows the median of the data, and the whiskers indicate the minimum and maximum of all the data; The main effect is shown as an inset (Fig. 2A), while different letter or asterisk (∗) denotes significant interactions (between groups); boxes with different letters are significantly different (nonparametric Two-way ANOVA).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Molecular and Cellular Endocrinology, , Rajeswari, J.J., Gilbert, G.N.Y., Khalid, E., Vijayan, M.M., Brain monoamine changes modulate the corticotropin-releasing hormone receptor 1-mediated behavioural response to acute thermal stress in zebrafish larvae, 112494112494, Copyright (2025) with permission from Elsevier. Full text @ Mol. Cell. Endocrinol.
