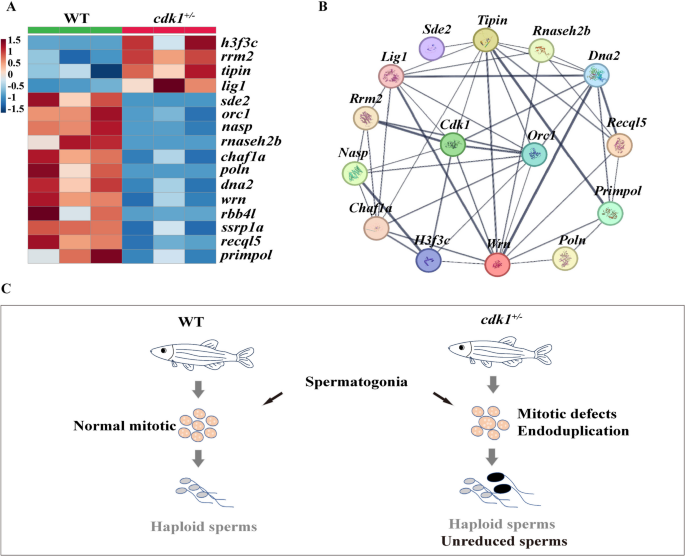

Fig. 6 Patterns of DNA replication-related genes expression and unreduced sperm production in the early testis of cdk1+/− zebrafish. A Expression heatmap of DNA replication-related genes. B Network interaction analysis of DNA replication-related DEGs corresponding proteins. C Pattern diagram of unreduced gametes production in cdk1+/− zebrafish. cdk1, cyclin-dependent kinase 1; WT, wild-type zebrafish; cdk1+/−, zebrafish with heterozygous mutation of cdk1; DEGs, differentially expressed genes
