ZFIN Image: Li et al., 2025, Figure 9


Figure Caption

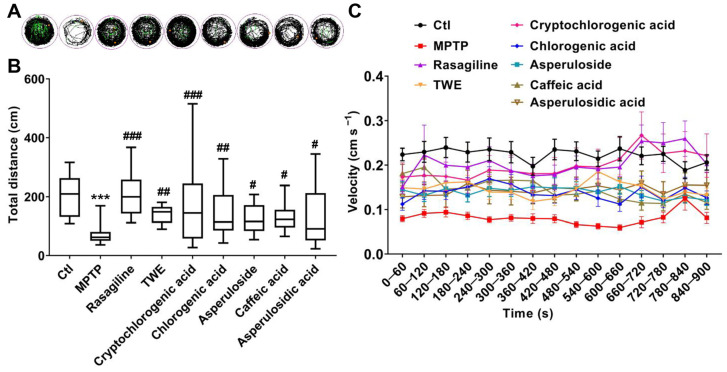

Figure 9

Anti-PD action of the main components in the key active constituent 30% EF by analyzing PD-like behavior. (A) The behavioral trajectories of zebrafish under pharmacological intervention. The zebrafish’s high-speed, medium-speed, and low-speed movement is depicted in red, green, and black lines, respectively. (B) The total distance traveled by zebrafish with different treatments (n = 24, *** p < 0.001 vs. Ctl; ^# p < 0.05, ^## p < 0.01, ^### p < 0.001 vs. MPTP). (C) Average swimming speed of zebrafish.
