Fig. 1

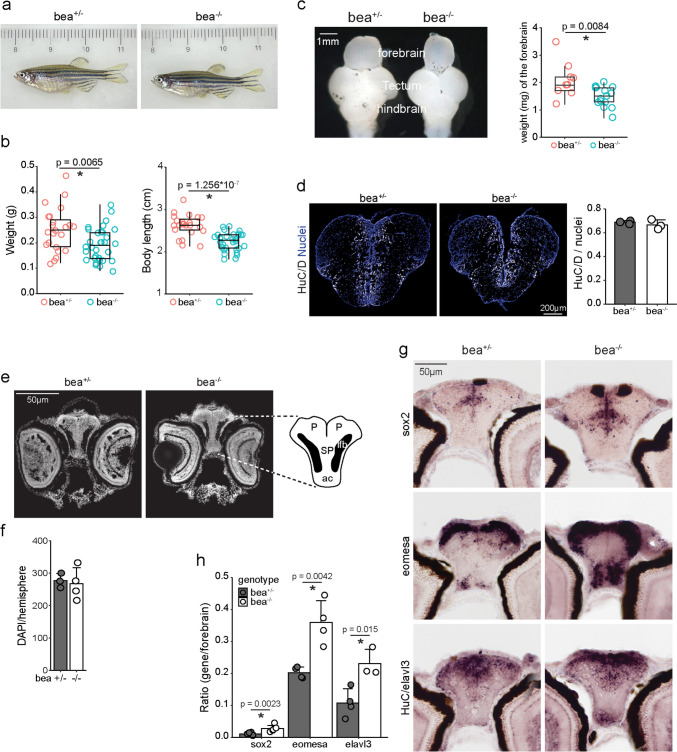

Increased neurons and progenitors in the forebrain of dlc mutant larval zebrafish but no gross abnormality in adults. a Image of dlc mutant and control adult zebrafish. b Quantitative analysis of body index of adult zebrafish. c Image and quantitative analysis of forebrain in dlc mutant and control adult zebrafish. d Image and quantitative analysis of the ratio of HuC/D-positive cells to total cells (nuclei) in adult zebrafish forebrains. Nuclei: DAPI staining. e, f Image and quantitative analysis of the number of nuclei in the forebrains of 5 dpf larval zebrafish. Nuclei: DAPI staining. P, pallium; SP, subpallium; lfb, lateral forebrain bundle; ac, anterior commissure [13]. g, h In situ hybridization and quantitative analysis of larval zebrafish at 5 dpf using probes specifically targeting progenitor gene sox2, neuronal precursor gene eomesa, and neuronal gene HuC/elavl3. Scale bars are indicated. Error bars represent standard deviation, and data points are shown in dots. * Significance with p value < 0.05 by Student’s t-test
