Fig. 4.

ID

ZDB-IMAGE-250219-49

Genes

Antibodies

Ab1-atp1a

Publication

Gjorcheska et al., 2025 - Sox10 is required for systemic initiation of bone mineralization

All Figures

Figures for Gjorcheska et al., 2025


Figure Caption

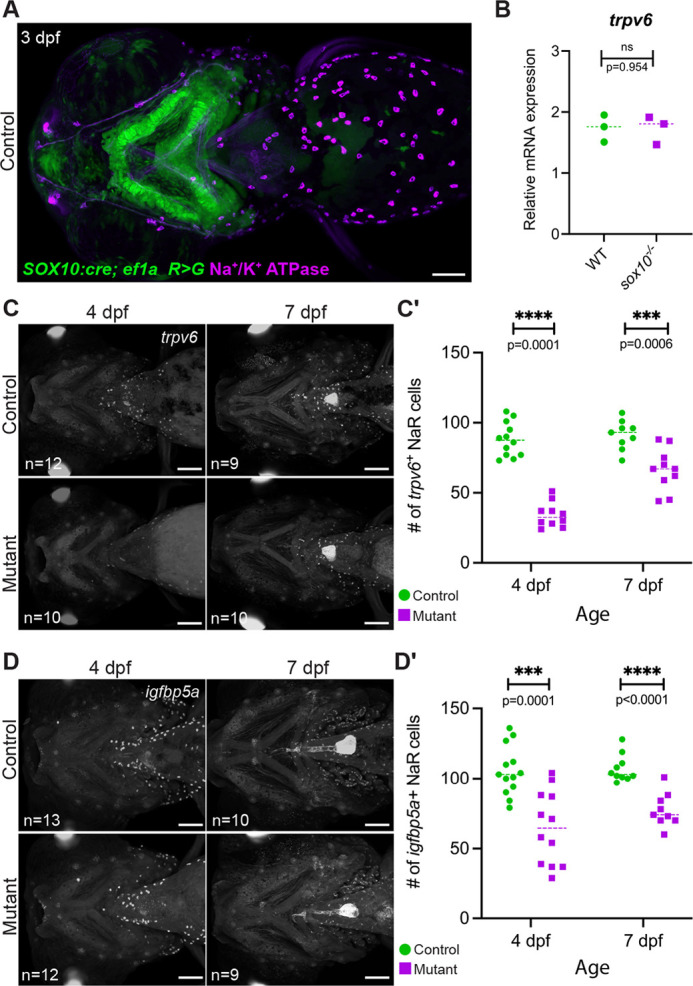

Fig. 4.

Reduction in trpv6⁺ NaR cell number in the sox10 mutants. (A) Immunostaining of a 3 dpf SOX10:Cre; ef1a: DsRed>GFP larva with an antibody against the Na⁺/K⁺ ATPase pump confirms that ionocytes do not derive from neural crest. (B) rt-PCR demonstrates that trpv6 transcription is not overtly altered at the whole-body level at 4 dpf. Each point represents a pool of 10-15 embryos (unpaired t-test; P=0.954, d.f.=4). (C-D′) Fluorescence in situ hybridizations for trpv6 (C) and igfbp5a (D) demonstrate a striking and significant reduction in NaR cell number in mutants at 4 dpf (quantified in C′,D′), with partial recovery by 7 dpf (unpaired t-tests; trpv6: 4 dpf: P<0.000001, d.f.=20; 7 dpf: P=0.0006, d.f.=17; igfbp5a: 4 dpf: P=0.0001, d.f.=23; 7 dpf: P<0.0001, d.f.=17). In B,C′,D′, dashed lines indicate the median. ns, not significant; WT, wild type. Scale bars: 100 µm.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
