Figure Caption

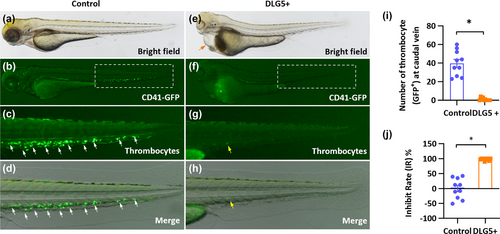

Fig. 1 Over-expression of human DLG5 causes thrombocytes loss in zebrafish. (a–h) Gross morphology of Tg (CD41: GFP) zebrafish embryos at 3-dpf. Compared with control zebrafish (empty vector), human DLG5 over-expression (DLG5+) causes pericardial oedema (e, red arrowhead) and thrombocyte loss (g, h, yellow arrows). (i,j) Quantification of the average number of thrombocyte (GFP+) at caudal vein. Error bars, mean ± SEM.; *P < 0.05 (n = 10; Student's t test). dpf, days post fertilization.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Br. J. Pharmacol.
