Fig 5 Foxf1 sites are required for 3’reg1 reporter expression.

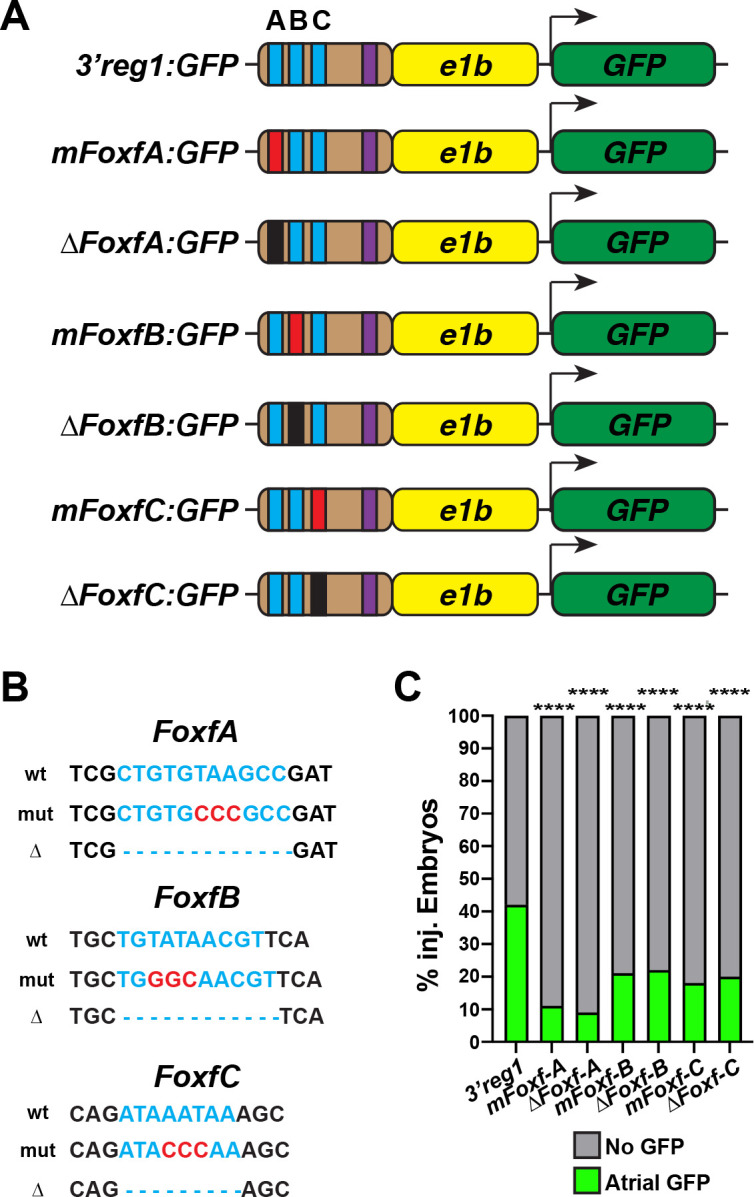

A) Schematics of 3’reg1:GFP reporter constructs with WT, deleted, and mutated Foxf sites. Foxf sites (blue), mutated Foxf sites (red), deleted Foxf sites (black), and Lef/Tcf site (purple). B) Sequences of the WT (blue), mutated (red), and deleted (dashes) Foxf sites within the 3’reg1 enhancer. C) The percentage of transient transgenic embryos with reporter expression in the atria. Control (3’reg1) (n = 150); mFoxf-A (n = 60); ΔFoxf-A (n = 101); mFoxf-B (n = 49); ΔFoxf-B (n = 200); mFoxf-C (n = 98); ΔFoxf-C (n = 195).
