ZFIN Image: Hagen et al., 2024, Figure 1


Figure Caption

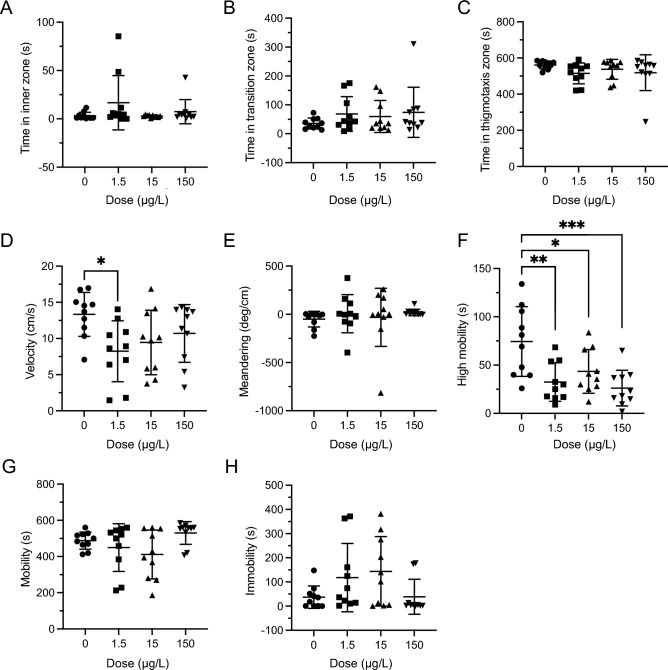

Figure 1

Acute LSD effect in the open field (OF) test. (A) Time spent in inner zone was not significantly different after acute dosing. (B) Time in transition zone was not significantly different after acute dosing. (C). Time spent in thigmotaxis zone was not significantly different after acute dosing. (D) Velocity was significantly different after acute dosing. The * represents a significant difference of P < 0.05. (E) Meandering was not significantly different after acute dosing. (F) High mobility was significantly different after acute dosing. The * represents a significant difference of P < 0.05, ** represents a significant difference of P < 0.01, and *** represents a significant difference of P < 0.001. (G) Mobility was not significantly different after acute dosing. (H) Immobility was not significantly different after acute dosing. Sample sizes for A-H: 0 (n = 10), 1.5 (n = 10), 15 (n = 10), 150 (n = 10). Data presented as mean + /- SD.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Sci. Rep.
