Fig. 6

ID
ZDB-IMAGE-240130-81
Source
Figures for DeOliveira-Mello et al., 2023
Figure Caption

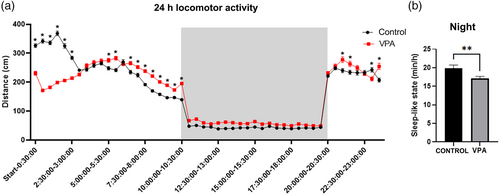

Fig. 6 Locomotor activity test during 24 h at 6–7 dpf. (a) Locomotion was evaluated in light during 10 hours, followed by a dark period of the same length (gray), followed by another 4 h light period. Analysis of distance moved in light showed significant differences between VPA-exposed and control larvae (asterisks). (b) Although tracking showed no differences in distance moved during the night, we found significant differences in the sleep-like state. We considered sleep-state as at least 60 s of no movement in a row and calculated how many minutes per hour VPA-treated animals and controls were immobile. VPA-exposed animals showed significantly less movement than controls in the night (b). Data are expressed as mean ± SEM, n = 20 in controls and n = 21 in treated animals, *p-value <0.05.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Autism Res
