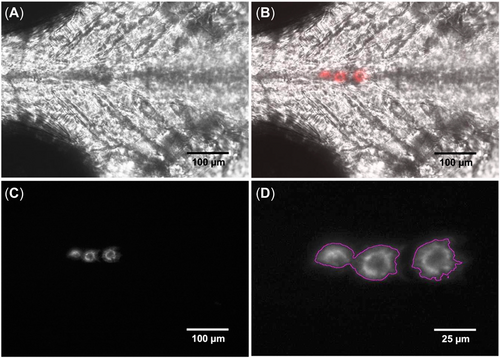

Fig. 3 Fiji (ImageJ Ver 2.1.0/1.53c) analysis of the thyroid follicles of a negative control transgenic zebrafish (Danio rerio, tg:mcherry) embryo at ×20 magnification: (A) brightfield (DIA 340 mm) image of the head region; (B) overlay of the DIA and tetramethylrhodamine (TRITC) channel showing the location of thyroid follicles in red; (C) TRITC channel as gray scale used for the image analysis; and (D) thyroid follicle micrograph after image analysis. Three pictures with average intensity were overlaid, and the area within the pink circles was analyzed (D).
