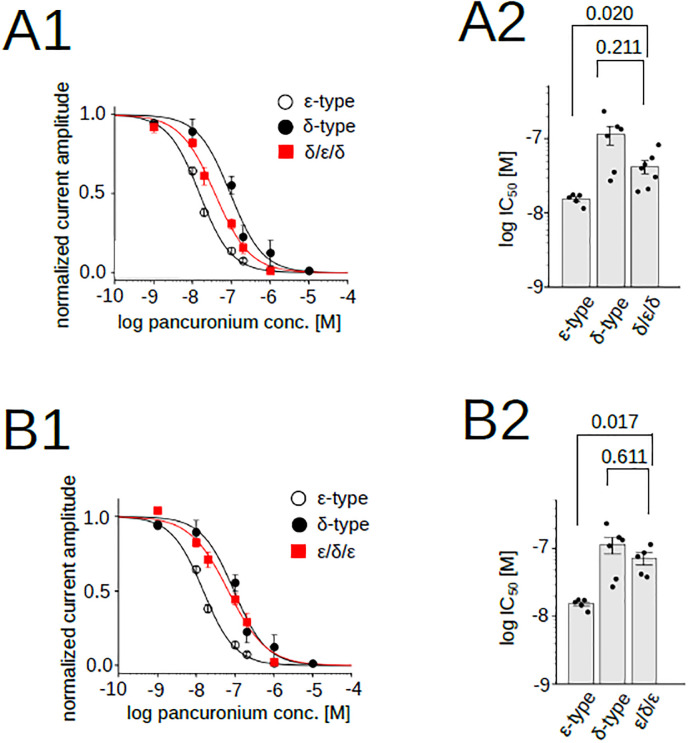

Fig 7 Pancuronium sensitivity of nAChR chimeras, δ/ε/δ and ε/δ/ε.

(A1), (B1), Pancuronium dependent inhibition of nAChRs. Data for the δ- and the ε-types are identical to those shown in Fig 1C. Data points are shown as mean ± sem. (A2), (B2), IC₅₀s of chimeric subunits. Points and bars indicate IC₅₀ of individual oocytes and the means. Error bars indicate SEM. P values are shown above the bars (N = 7 for the δ/ε/δ, N = 5 for the ε/δ/ε).
