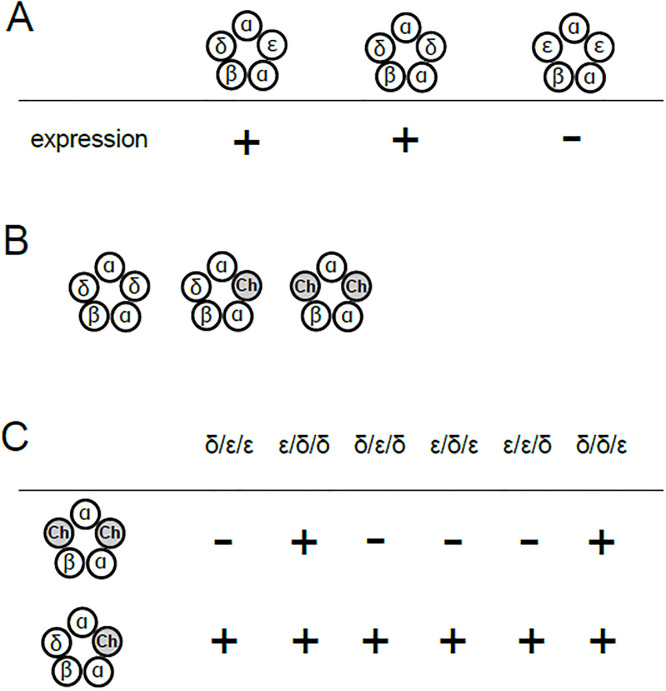

Fig 4 Pentameric combination of nAChR subunits and its expression in Xenopus oocytes.
(A), nAChR containing the δ and the ε subunits (left) or two δ subunits (middle) are functional. In contrast, current was not recorded in oocytes co-injected with α, β and ε subunit cRNA, without δ (right). (B), Possible combination of subunits when co-injected with the α, β, δ and the chimeric subunit. “ch” represents the chimeric subunit. (C), Summary of functionality of receptors containing one or two chimeric subunits tested in this study.
