ZFIN Image: Oyarbide et al., 2023, Figure 7.


Figure Caption

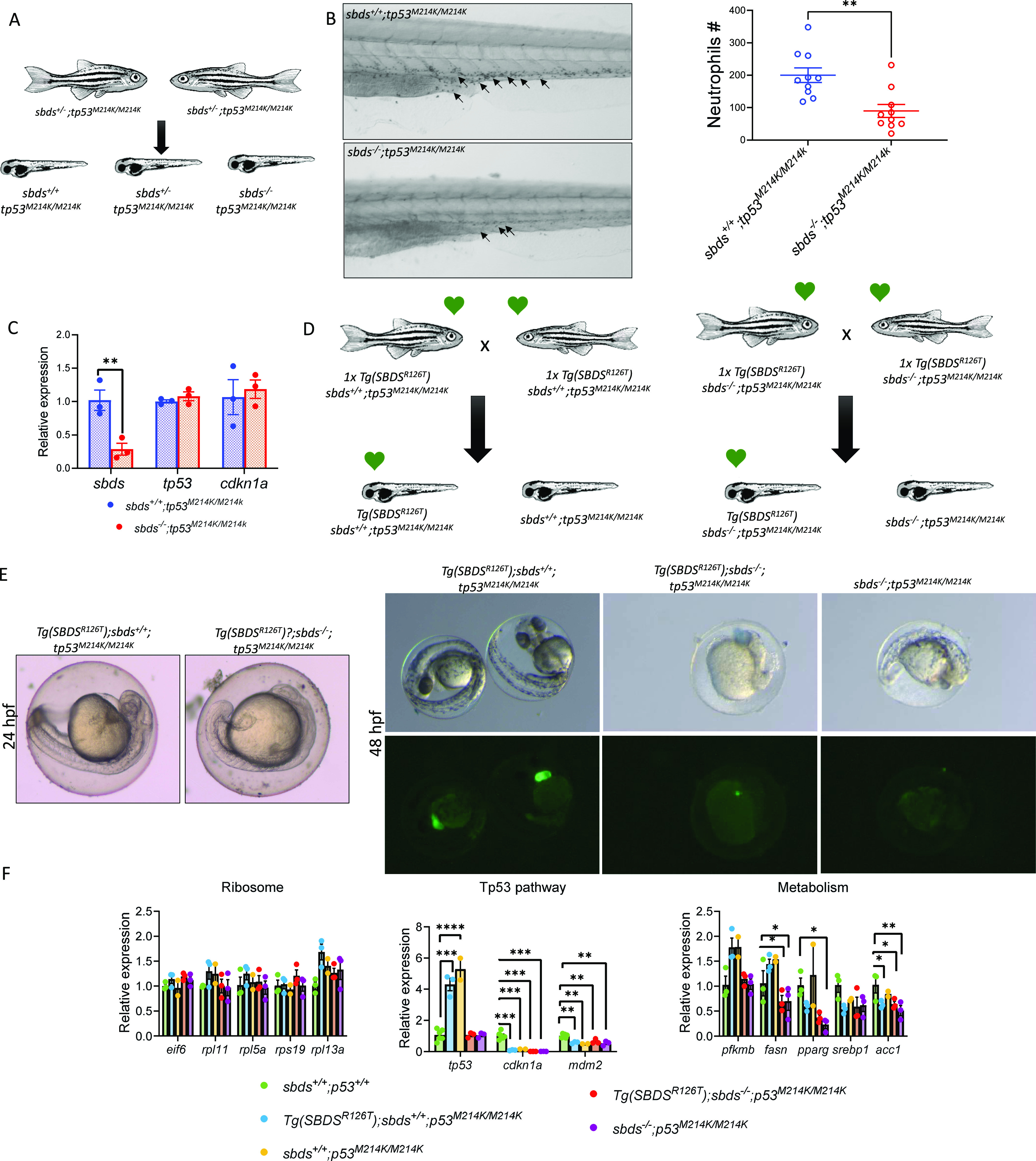

Figure 7. Tp53^M214K does not rescue neutropenia or survival in sbds mutants.

(A) Scheme of an incross of sbds^+/−; p53^M214K/M214K. (B) Sudan black staining and neutrophil count in 10 dpf larvae. (C) qRT-PCR analysis of sbds, tp53, and cdkn1a in the p53^M214K/M214K background comparing sbds KO and WT siblings. (D) Incross between WT sbds fish with 1x copy of the transgenic line in the tp53^M214K/M214K background. (E) Embryos obtained from crosses at 24 and 48 hpf. (F) qRT-PCR analysis of critical genes involved in ribosomes, metabolism, and tp53 pathways.
