ZFIN Image: Uribe et al., 2023, Fig. 3


Figure Caption

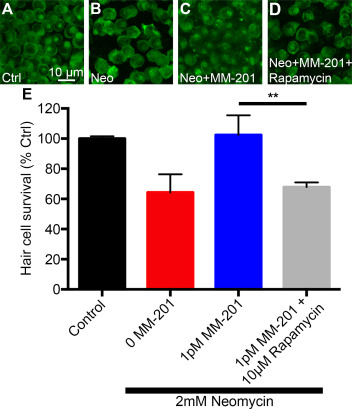

Fig. 3 MM-201 mediated protection is dependent on mTOR signaling. (A-D) Representative images of (A) untreated, (B) 2 mM neomycin, (C) 2 mM neomycin plus 1 pM MM-201, or (D) 2 mM neomycin plus 1 pM MM-201 and 10 µM rapamycin-treated utricles. (E) Protection from neomycin conferred by 1 pM MM-201 is attenuated with co-treatment of the mTOR inhibitor rapamycin (One-way ANOVA: F_3,7 = 12.56 p = 0.0033). Asterisks indicate significant difference between the 2 mM neomycin plus 1 pM MM-201 group and the 2 mM neomycin plus 1 pM MM-201 and 10 µM rapamycin group (**p<0.01). N = 2–3 utricular explants per treatment and error bars represent + s.d.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Hearing Research, 434, Uribe, P.M., Hudson, A.M., Lockard, G., Jiang, M., Harding, J., Steyger, P.S., Coffin, A.B., Hepatocyte growth factor mimetic confers protection from aminoglycoside-induced hair cell death in vitro, 108786108786, Copyright (2023) with permission from Elsevier. Full text @ Hear. Res.
