ZFIN Image: Nieoczym et al., 2023, Figure 10


Figure Caption

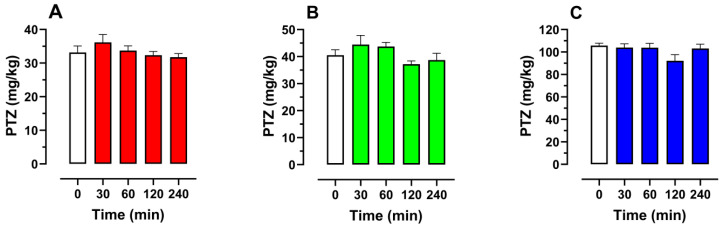

Figure 10

The time–course effect of schisandrin B (50 mg/kg, ip) on the threshold for myoclonic twitches (A), generalized clonic seizures with the loss of righting reflex (B), and tonic seizures (C) in the iv PTZ test in mice. Control group and groups tested 30 and 240 min after schisandrin B treatment consisted of 11 mice while groups tested 60 and 120 min after schisandrin B treatment had 12 animals. Data were analyzed using one-way ANOVA with the Tukey’s post hoc test. Data are depicted as mean ± SEM. White bars represent the control groups while colored represent schisandrin B-treated groups.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
