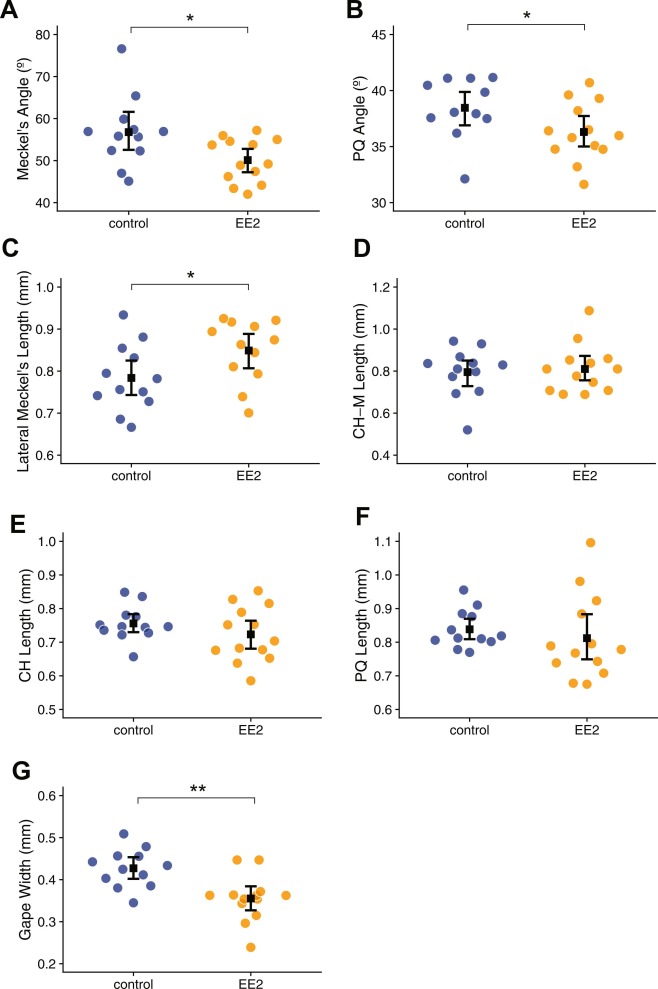

Fig. 5 Fig. 5. Prolonged exposure of AB zebrafish to 10 ng/L of EE2 from 15 dpf – 7 mm causes changes to craniofacial morphology. Plots showing Meckel’s angle (A), Palatoquadrate angle (B), Lateral Meckel’s length (C), Ceratohyal-Meckel’s length (D), Ceratohyal length (E) and Palatoquadrate length (F) and gape width (G) in control and EE2 treated fish. Visual representation of each measurement is shown in Fig. 1.
