Fig. 4

ID
ZDB-IMAGE-230518-86
Source
Figures for Doboszewska et al., 2023
Figure Caption

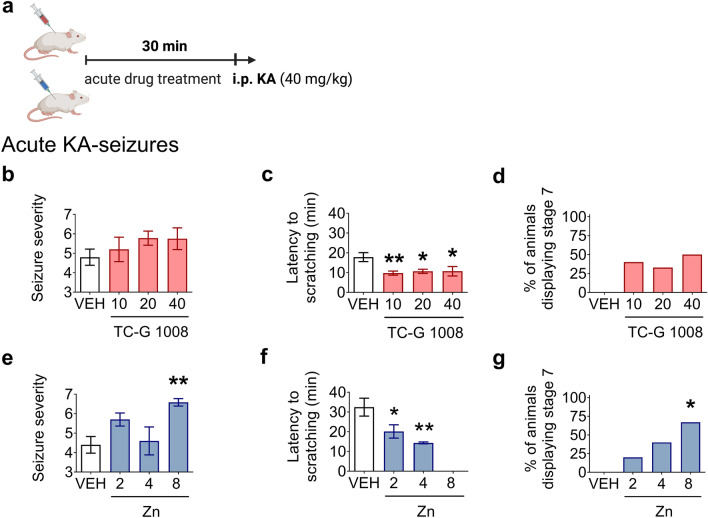

Fig. 4

The effects of single doses of TC-G 1008 (bd) or ZnCl2 (eg) on acute seizures induced by kainic acid (KA). a Drugs or VEH were administered i.p. in Swiss Albino mice. 30 min later, KA (40 mg/kg, i.p.) was administered. Immediately after KA administration, the mice were subjected to an evaluation of behavioral seizures for 2 h. bg The doses of drugs are shown on x-axes in mg/kg. Data are expressed as means ± SEM of seizure severity or latency to scratching and the percentage of animals displaying stage 7 characteristics (SE/death). Latency to scratching was impossible to measure in mice that received 8 mg Zn/kg because they proceeded immediately to advanced seizure stages. bd n = 10 VEH, n = 10 TC-G 1008 10, n = 9 TC-G 1008 20, n = 8 TC-G 1008 40. eg n = 10 VEH, n = 10 Zn 2, n = 10 Zn 4, n = 12 Zn 8. p values were determined by one-way ANOVA and Bonferroni’s multiple comparison test or the Chi-square test. *p < 0.05, **p < 0.01

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Cell. Mol. Life Sci.
