Fig. 4

ID
ZDB-IMAGE-230503-17
Source
Figures for Gustafsson et al., 2022
Figure Caption

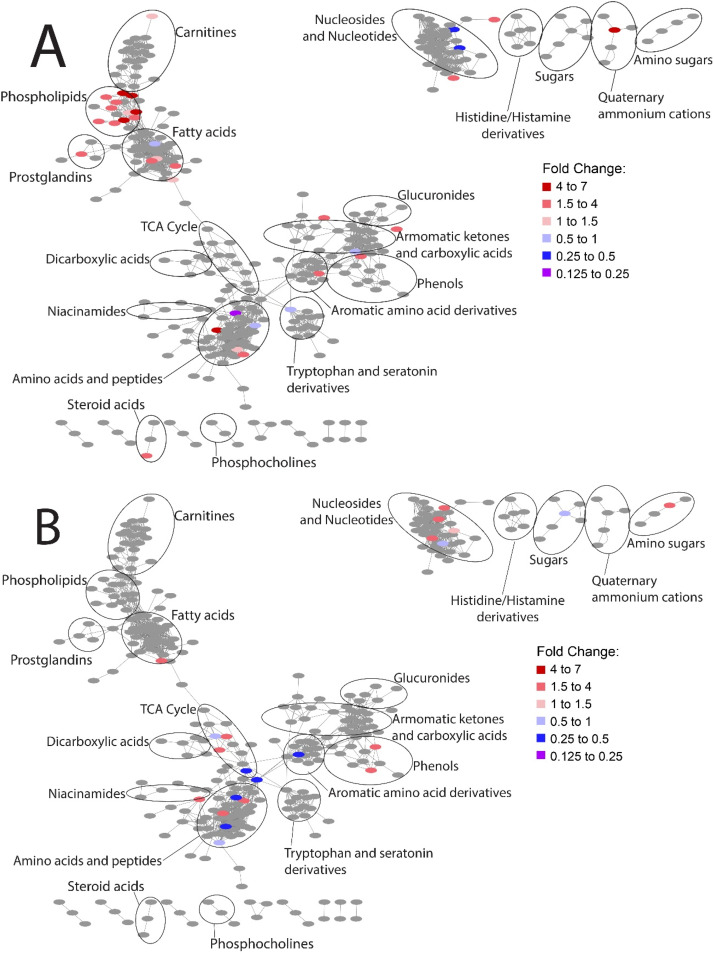

Fig. 4 Metabolic maps for A) 6-OH-BDE47 0.01 μM exposure B) OH-PBDE Mix 0.03 μM exposure. Metabolites are clustered and linked based on known metabolic pathways and chemical similarity using MetaMapp.
